category:
Electric Motors
height:
7
length:
11
manufacturer:
Century
mpn:
515
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
7.5

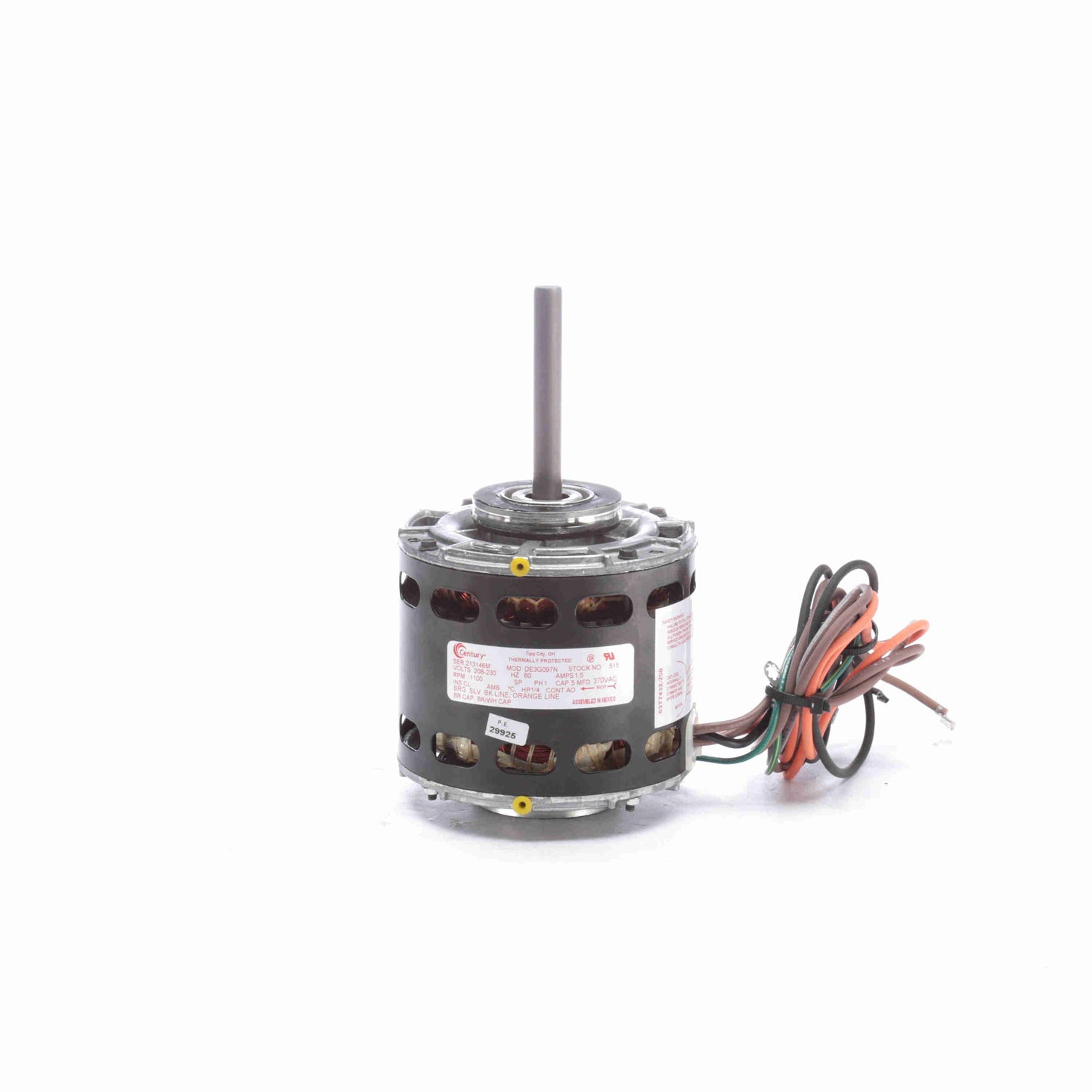

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1100 rpm
Current1.5 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame42Y
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Shaft End
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.67 in
Shaft Diameter0.500 in
Shaft Extension3.96 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
