category:
Electric Motors
country_of_origin:
TW
height:
6.5
length:
20.18
manufacturer:
Century
mpn:
OFC1024
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
6.81

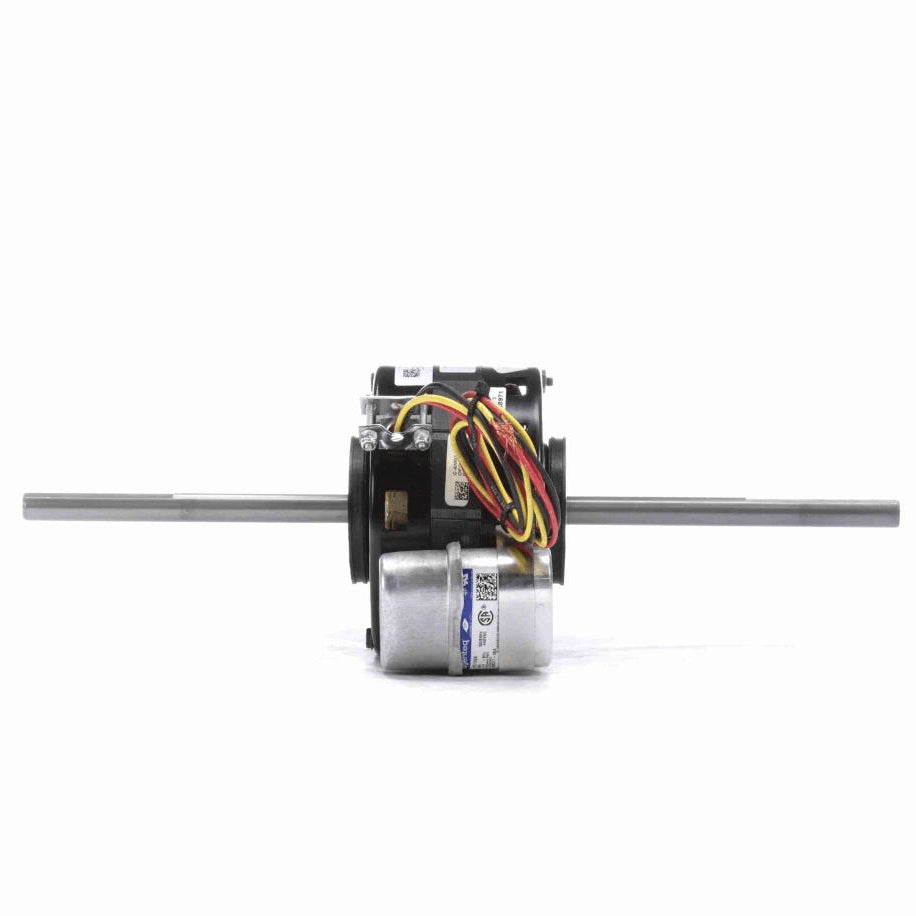

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-440 Volts (Supplied with Motor)
- Thermally Protected
- Open Lead End End-Frame and Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 33" Leads
- Resilient Ring Mount
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current1.8 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Lead End
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension7.7 X.5 X7.7 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
