category:
Electric Motors
height:
9
length:
11
manufacturer:
Century
mpn:
OCA1024
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
8

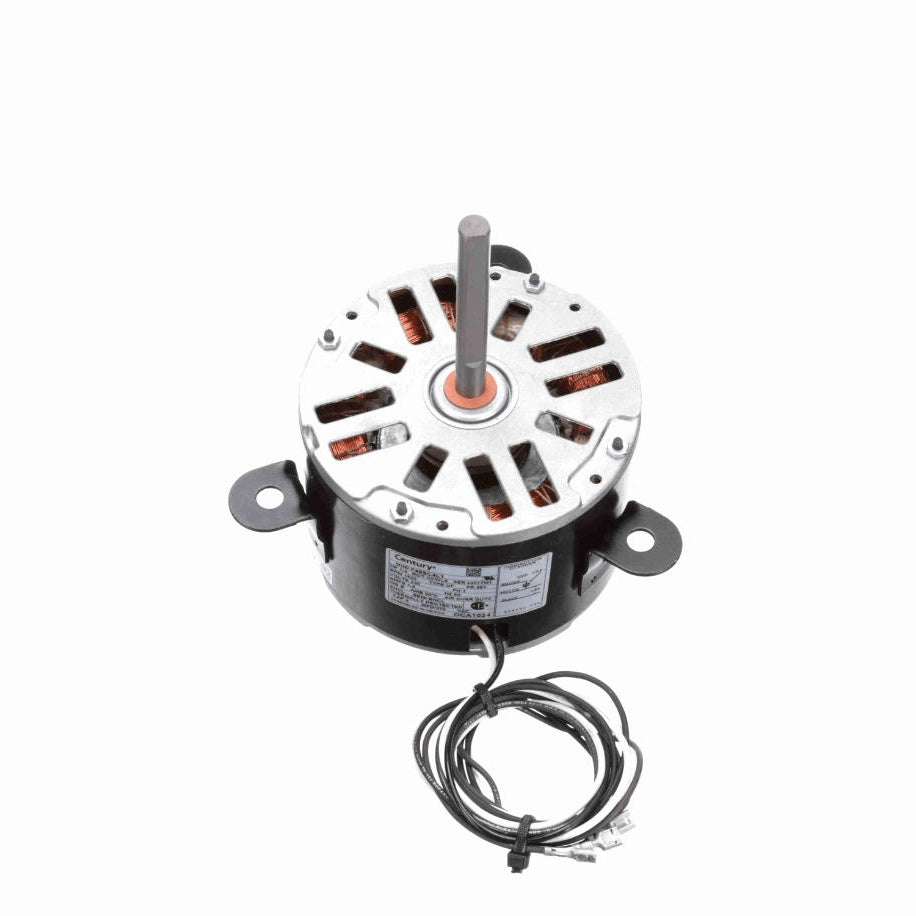

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Opposite Shaft End End-Frame, Enclosed Shaft End End-Frame and Shell, Air Over
- Class B Insulation, 60°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 39" Leads with Quick Connect Terminals
- Lug Mount
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current1.4 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Lead End
MountingLug
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.25 in
Shaft Diameter0.500 in
Shaft Extension4 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
