category:
Electric Motors
country_of_origin:
MX
height:
9
length:
11
manufacturer:
Century
mpn:
OTC1864
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
8

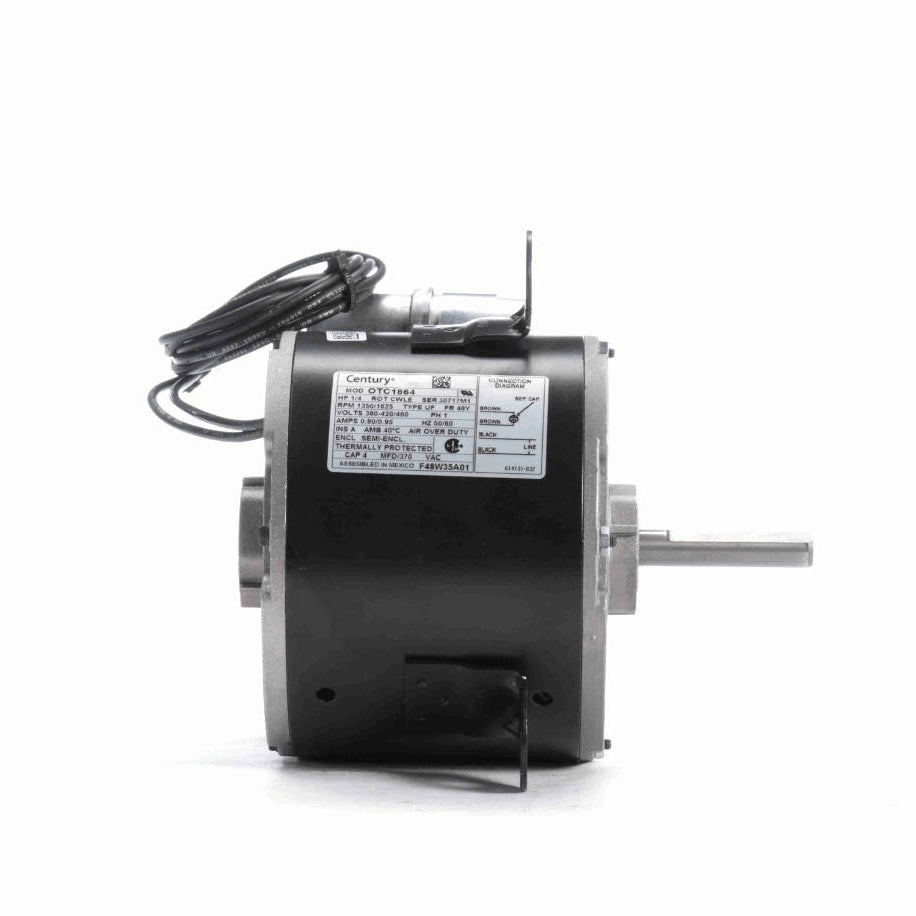

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Shaft End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class A Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flats
- 39" Leads
- Lug Mount, Hex Mounting Hub Shaft end and Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1350/1625 rpm
Current0.80/0.95 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Lead End
MountingLug
Motor OrientationVertical Shaft Down
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length3.75 in
Shaft Diameter0.500 in
Shaft Extension2 3/4 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
