category:
Electric Motors
height:
9.81
length:
12.87
manufacturer:
Century
mpn:
OML6433
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
9.81

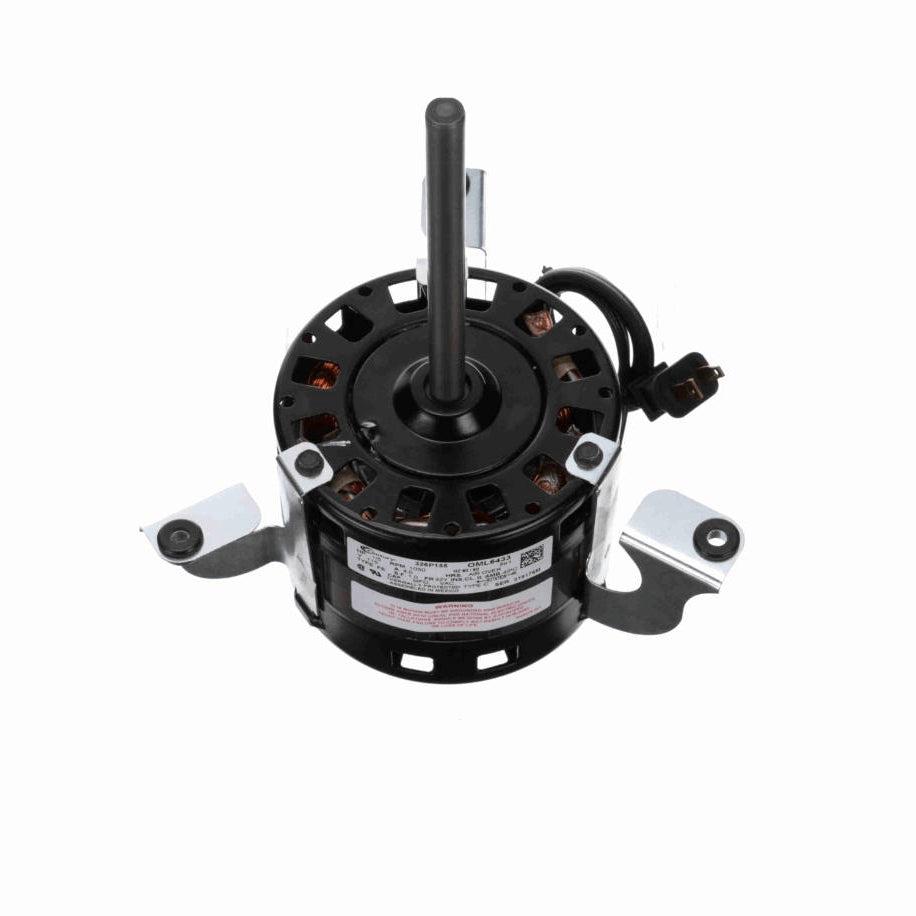

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 20" Leads with Molded Plug Assembly
- Flex Mount
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current4.0 A
Number of Speeds1
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/5 Hp
Output KW0.15 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingFlexible Arms
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension5.6 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
