category:
Electric Motors
country_of_origin:
TW
height:
9
length:
11
manufacturer:
Century
mpn:
ORV4540
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
8

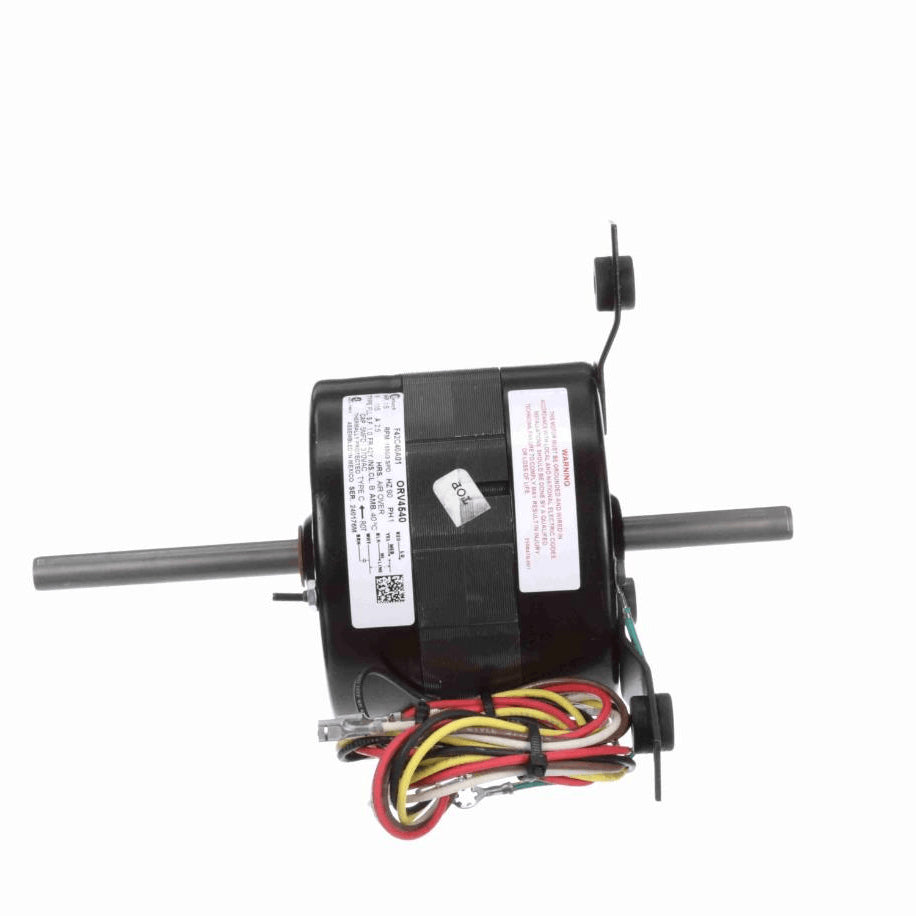

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Enclosed Lead End End-Frame and Opposite Lead End, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 42" Leads with AMP PINS, 26" Leads with Female Spade Terminals
- Lug Mount Opposite Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1650 rpm
Current2.5 A
Number of Speeds3
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/5 Hp
Output KW0.15 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Lead End
MountingLug
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension4.0X.5X2.6 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
