category:
Electric Motors
country_of_origin:
TW
height:
5.81
length:
10.87
manufacturer:
Century
mpn:
OMC6517
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12
width:
5.81

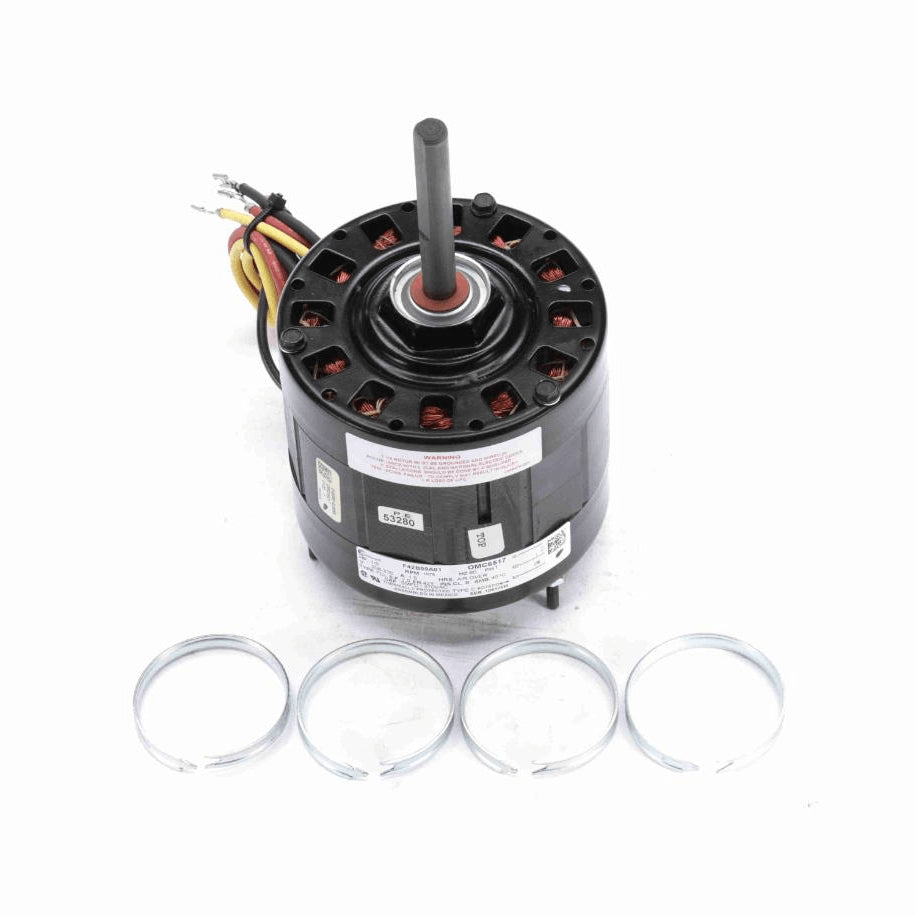

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shaft End End-Frame, Enclosed Lead End End-Frame and Shell, Air over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 34.5" Leads with Female Spade Terminal
- Extended Studs Lead End, Vertical Shaft Down
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.5 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/5 Hp
Output KW0.15 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Lead End
MountingExtended Studs
Motor OrientationVertical Shaft Down
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension3.9 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
