category:
Electric Motors
country_of_origin:
TW
height:
6.31
length:
16.87
manufacturer:
Century
mpn:
OYK6518
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12
width:
6.31

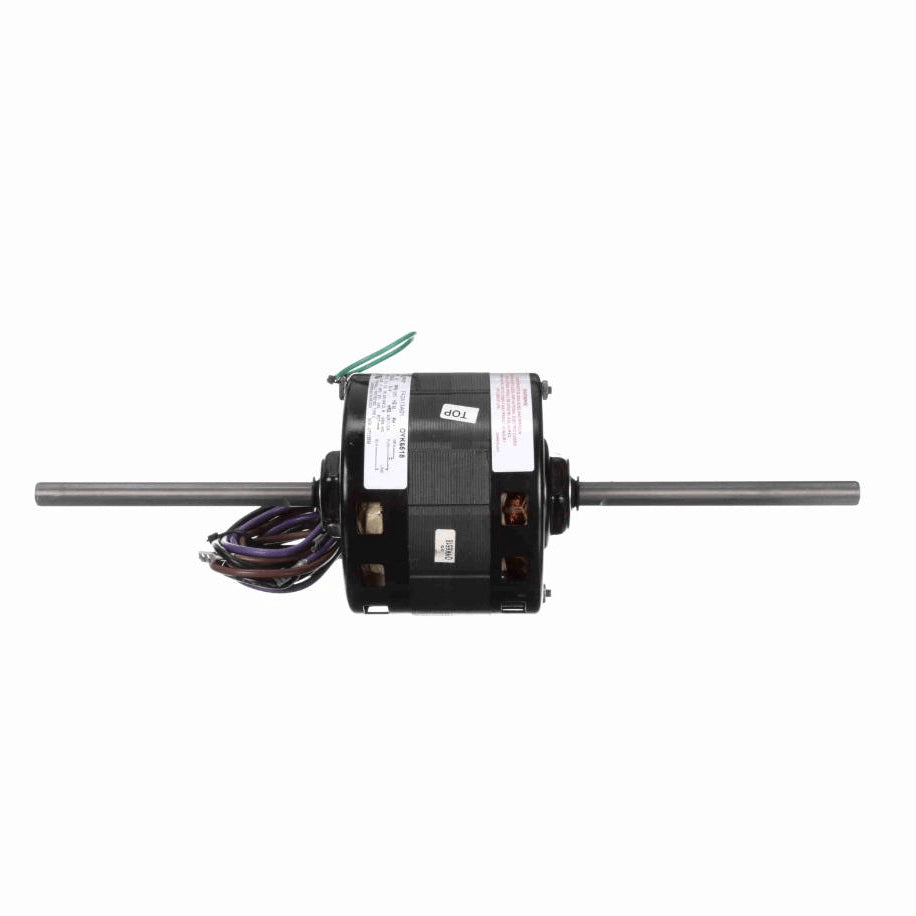

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Enclosed Lead End End-Frame and Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 33.5" Leads with Female Spade Terminal
- Hex Mounting Hubs Lead End and Opposite Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.4 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/5 Hp
Output KW0.15 kW
Service Factor1
Frame42Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Lead End
MountingRound
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension6.3X.5X6.3 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
