category:
Electric Motors
country_of_origin:
TW
height:
6.81
length:
13.78
manufacturer:
Century
mpn:
ORM10206V1
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
6.41

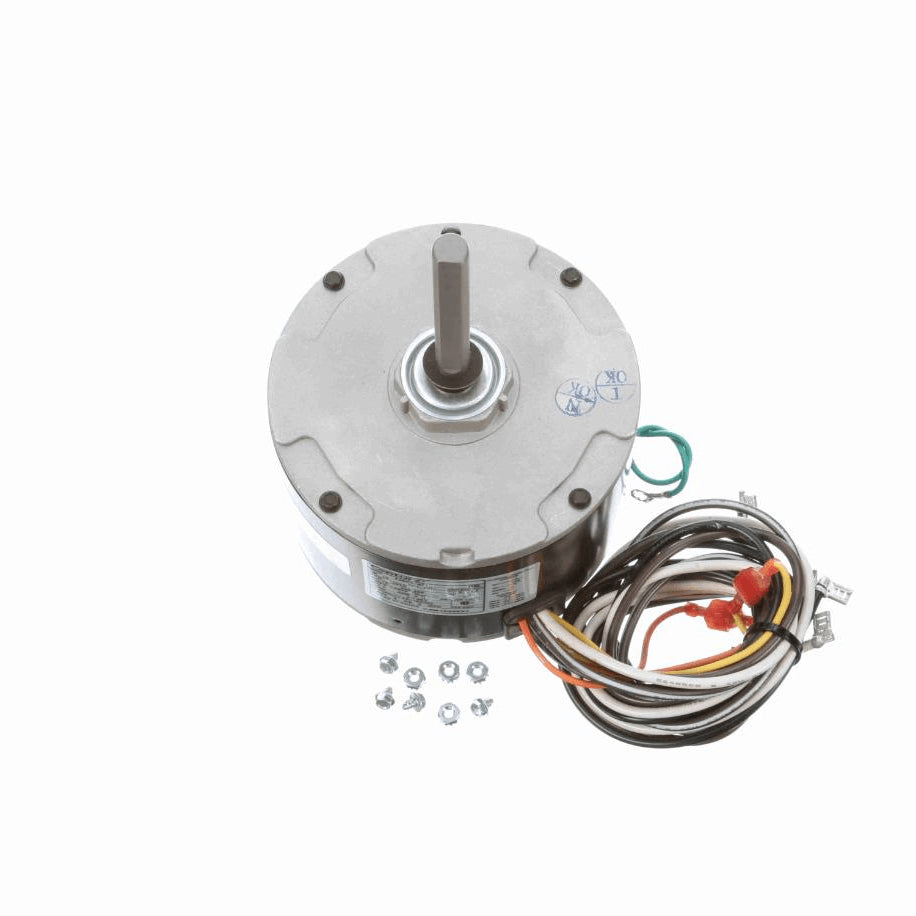

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 OR 3 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Flat
- 41" Leads with Flag Terminals
- Extended Studs Lead End, Mounting Holes in Shell, Hex Mounting Hub Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.4 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/5 Hp
Output KW0.15 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.25 in
Shaft Diameter0.500 in
Shaft Extension4.3 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
