category:
Electric Motors
country_of_origin:
MX
height:
5.81
length:
8.87
manufacturer:
Century
mpn:
OCA10208
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12
width:
5.81

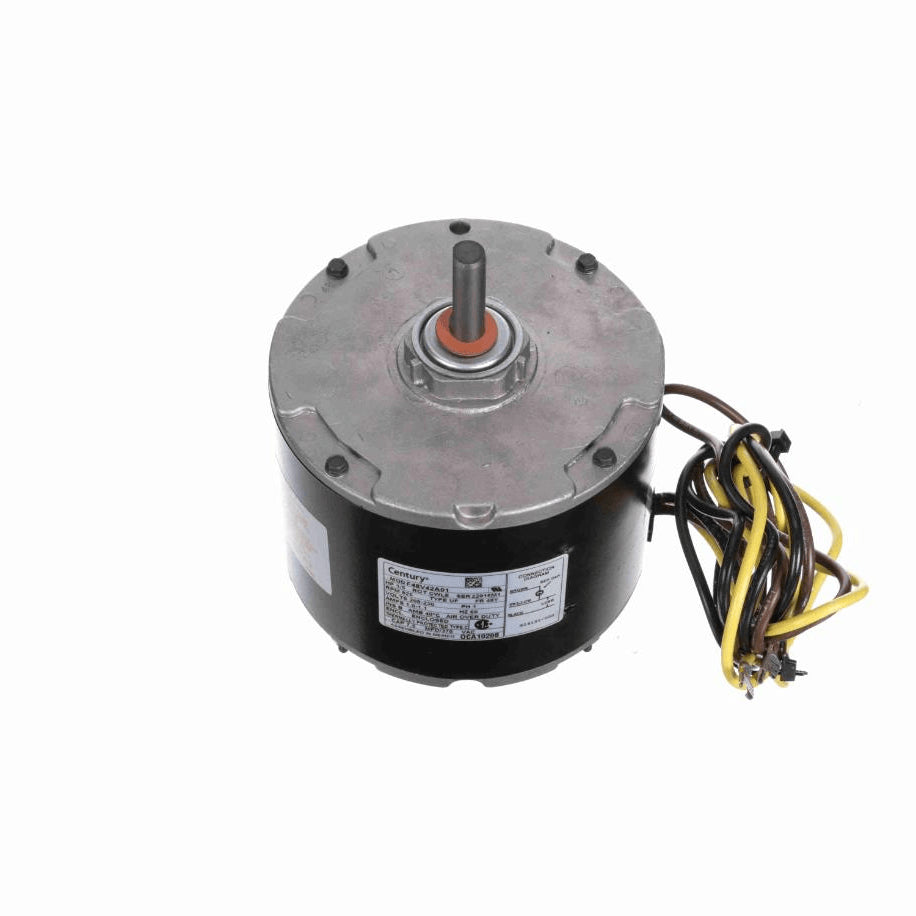

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 46" Leads with Quick Connect Terminals
- Extended Studs Opposite Shaft End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed825 rpm
Current1.0-1.1 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/5 Hp
Output KW0.15 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationClockwise Lead End
MountingExtended Studs
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.75 in
Shaft Diameter0.500 in
Shaft Extension2.1 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
