category:
Electric Motors
country_of_origin:
TW
height:
7
length:
11
manufacturer:
Century
mpn:
OFE1016
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
7.5

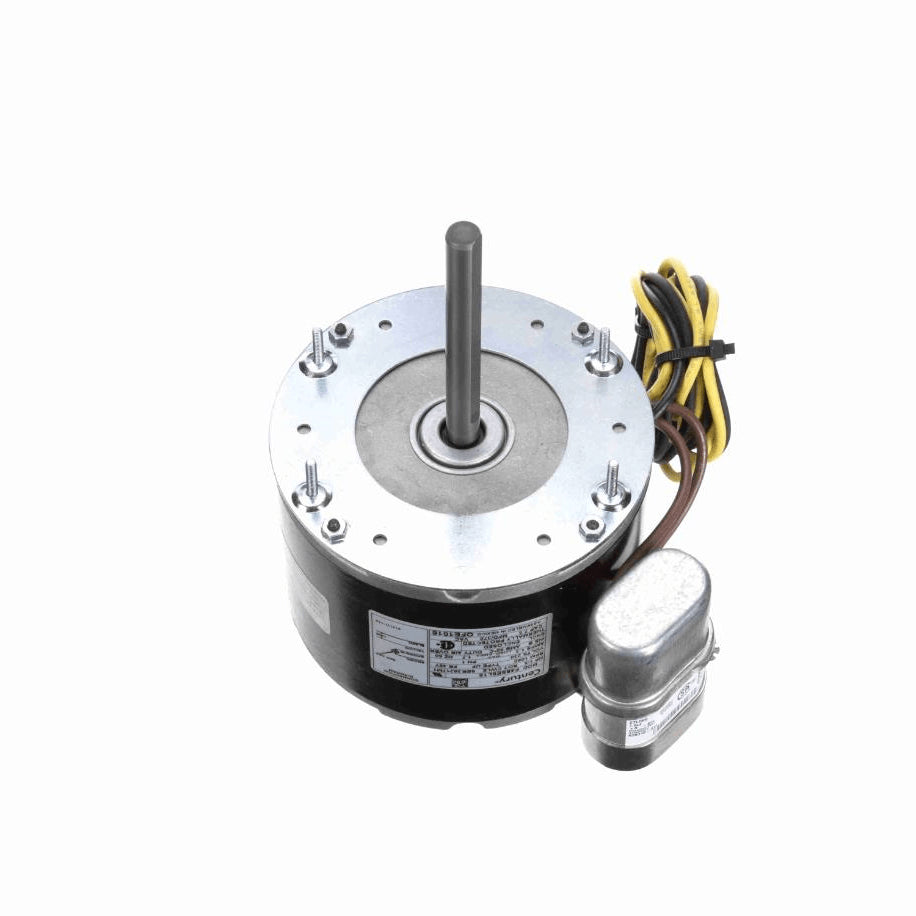

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 51" Leads with Flag Terminals
- Extended Studs Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1080 rpm
Current1.3 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/5 Hp
Output KW0.15 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Lead End
MountingExtended Studs
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.25 in
Shaft Diameter0.500 in
Shaft Extension4.3 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
