category:
Electric Motors
country_of_origin:
TW
height:
9.81
length:
27.88
manufacturer:
Century
mpn:
955
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
7.81

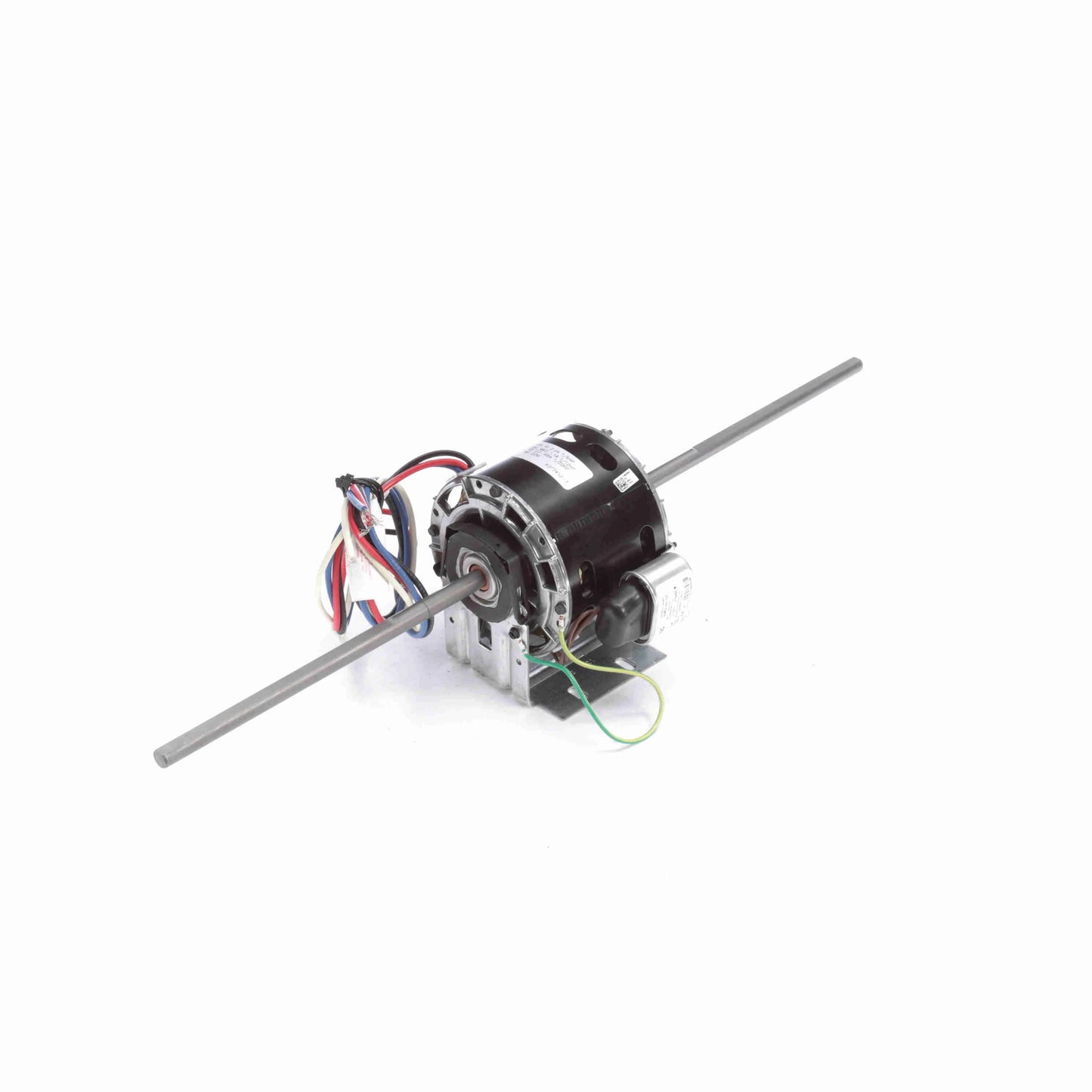

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 40" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1500 rpm
Current2.0-1.1-.68 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/6-1/12-1/20 Hp
Output KW0.13 kW
Service Factor1
Frame42Y
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.42 in
Shaft Diameter0.500 in
Shaft Extension10.5X.5X10.4 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
