category:
Electric Motors
country_of_origin:
TW
height:
10
length:
11
manufacturer:
Century
mpn:
OPV748
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
11

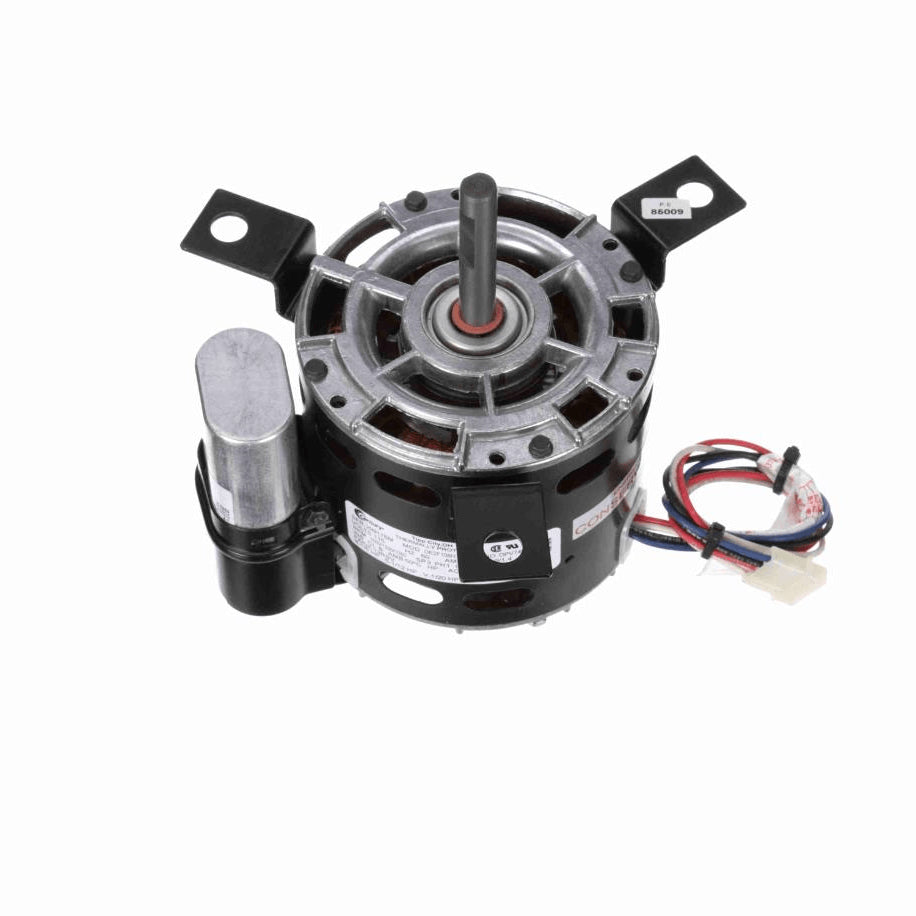

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 50°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat, and 1" Flat
- 14" Leads with AMP Connector
- Lug Mount
Additional Information
Thermal ProtectionAutomatic
Speed1550/1300/1050 rpm
Current2.1/1.9/1.4 A
Number of Speeds3
Ambient Temperature50 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/6,1/12,1/20 Hp
Output KW0.13 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Lead End
MountingLug
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length3.67 in
Shaft Diameter0.500 in
Shaft Extension2-5/8 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
