category:
Electric Motors
country_of_origin:
TW
height:
10
length:
15.5
manufacturer:
Century
mpn:
513A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
10.5

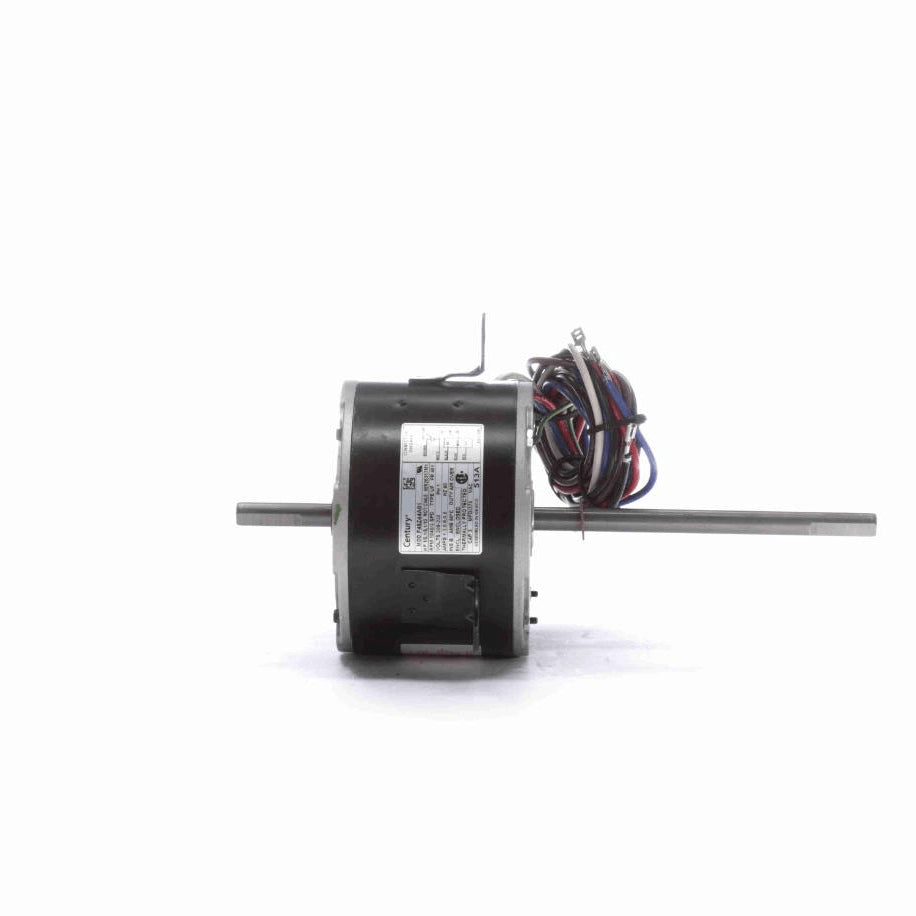

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 3 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 38" Leads with Quick Connect Terminals
- Lug Mount
Additional Information
Thermal ProtectionAutomatic
Speed1040 rpm
Current1.3,0.8,0.6 A
Number of Speeds3
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/6,1/8,1/10 Hp
Output KW0.13 kW
Service Factor1
FrameF48Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Lead End
MountingLug
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.25 in
Shaft Diameter0.500 in
Shaft Extension7.0 X 0.5 X 2.14 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
