category:
Electric Motors
height:
6.81
length:
8.74
manufacturer:
Century
mpn:
174A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
6.41

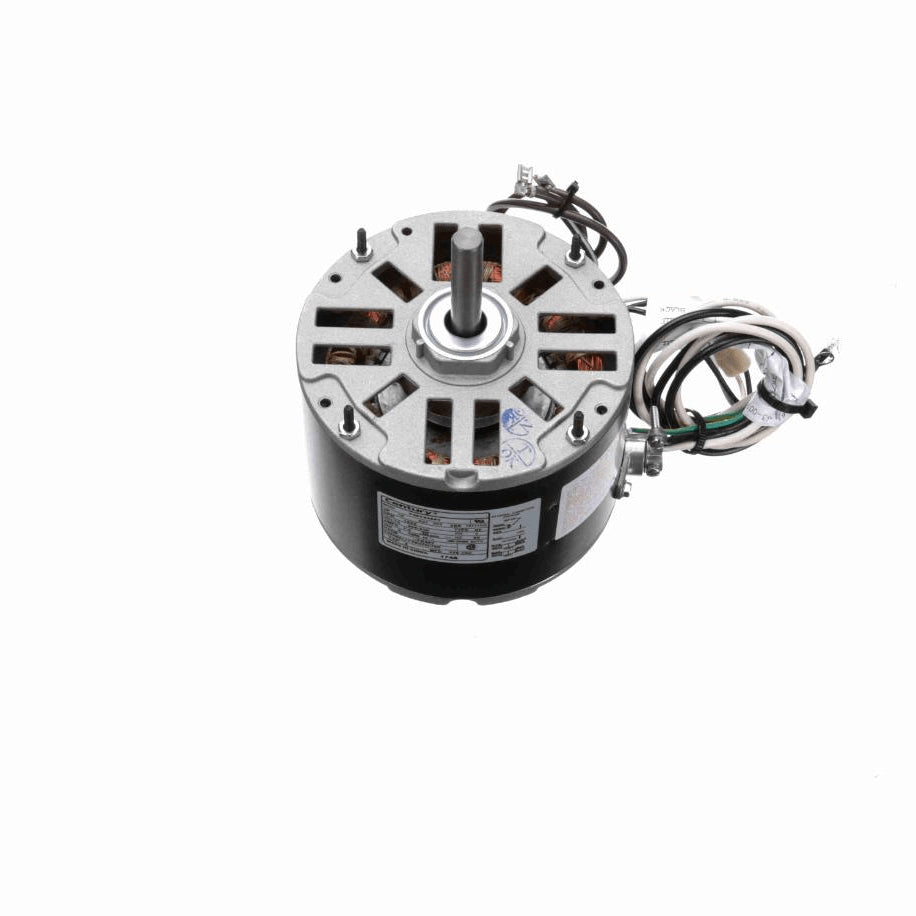

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current1.0 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/6 Hp
Output KW0.13 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.38 in
Shaft Diameter0.500 in
Shaft Extension2.6 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
