category:
Electric Motors
country_of_origin:
MX
height:
7
length:
9
manufacturer:
Century
mpn:
OCP0251
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
18
width:
9
Product Overview

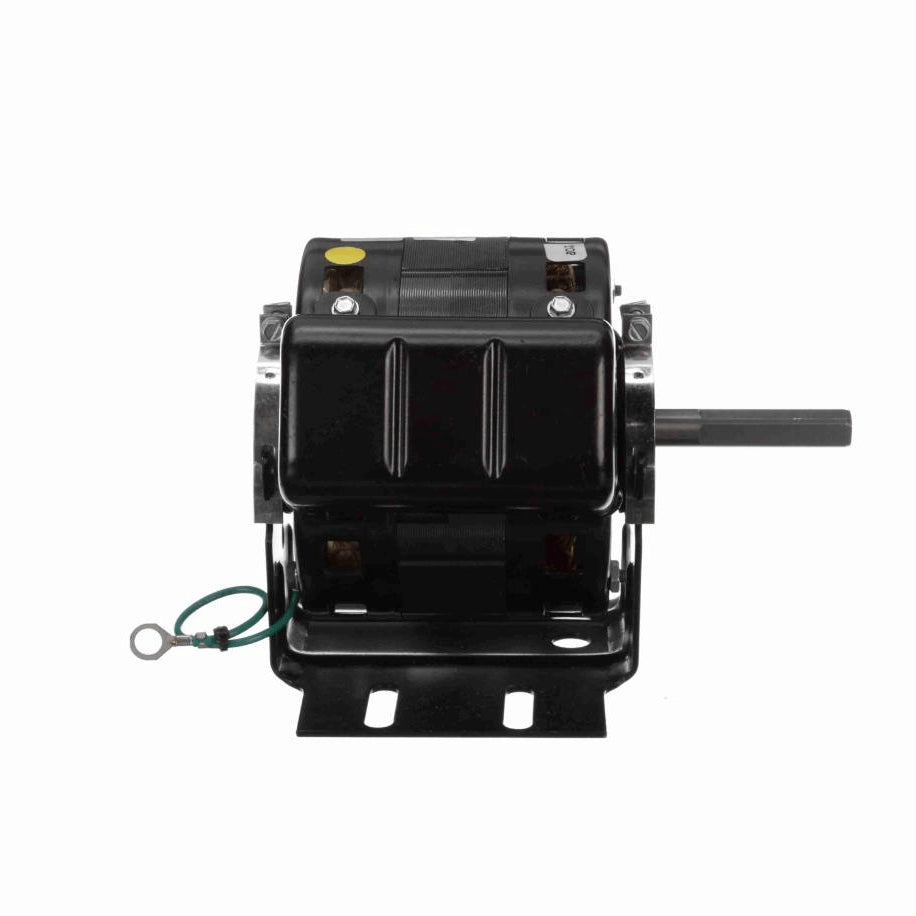

- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 47" Leads with #10 Eyelet
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1400/1625 rpm
Current1.5 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight18.00 LB
Country Of originMexico
Output HP1/6 Hp
Output KW0.13 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeDouble Flat
Shaft Diameter0.500 in
Shaft Extension3 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
