category:
Electric Motors
country_of_origin:
TW
height:
7
length:
11
manufacturer:
Century
mpn:
98
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
7.5

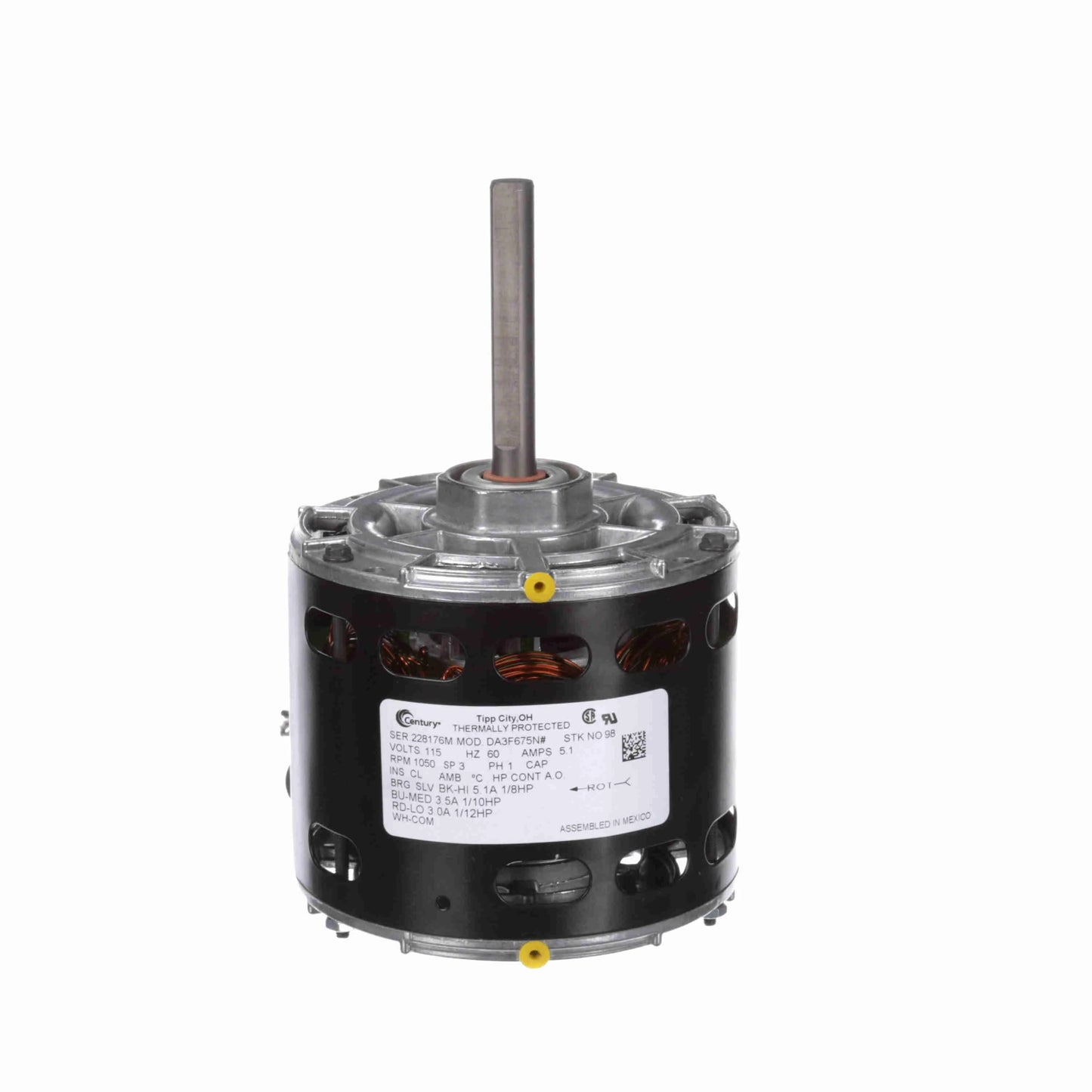

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 32" Leads
- Tapped Holes for Coleman Mount
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current5.1 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight8.00 LB
Country Of originMexico
Output HP1/8, 1/10, 1/12 Hp
Output KW0.10 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles6
RotationClockwise Shaft End
MountingRound Belly Band
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.67 in
Shaft Diameter0.500 in
Shaft Extension6.44 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
