category:
Electric Motors
country_of_origin:
TW
height:
10.3
length:
14.88
manufacturer:
Century
mpn:
799
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
12.81

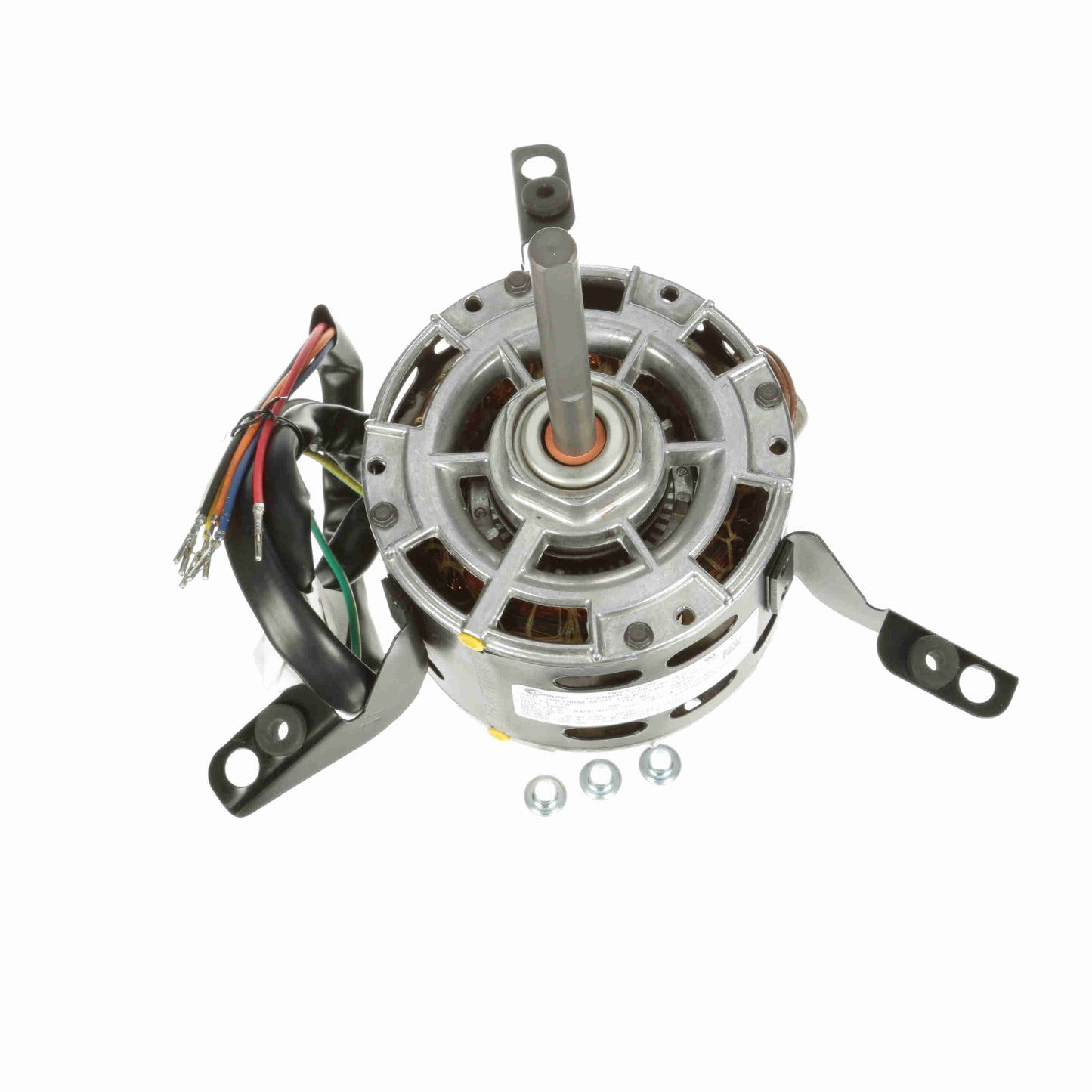

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Flex Mount
Additional Information
Thermal ProtectionAutomatic
Speed1000 rpm
Current2.75,2.2,1.9,1.1,0.75 A
Number of Speeds5
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight9.00 LB
Country Of originMexico
Output HP1/8, 1/10, 1/15, 1/20, 1/30 Hp
Output KW0.10 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Shaft End
MountingLug
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.17 in
Shaft Diameter0.500 in
Shaft Extension5.08 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
