category:
Electric Motors
country_of_origin:
MX
height:
5.81
length:
8.87
manufacturer:
Century
mpn:
9646
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
5.81

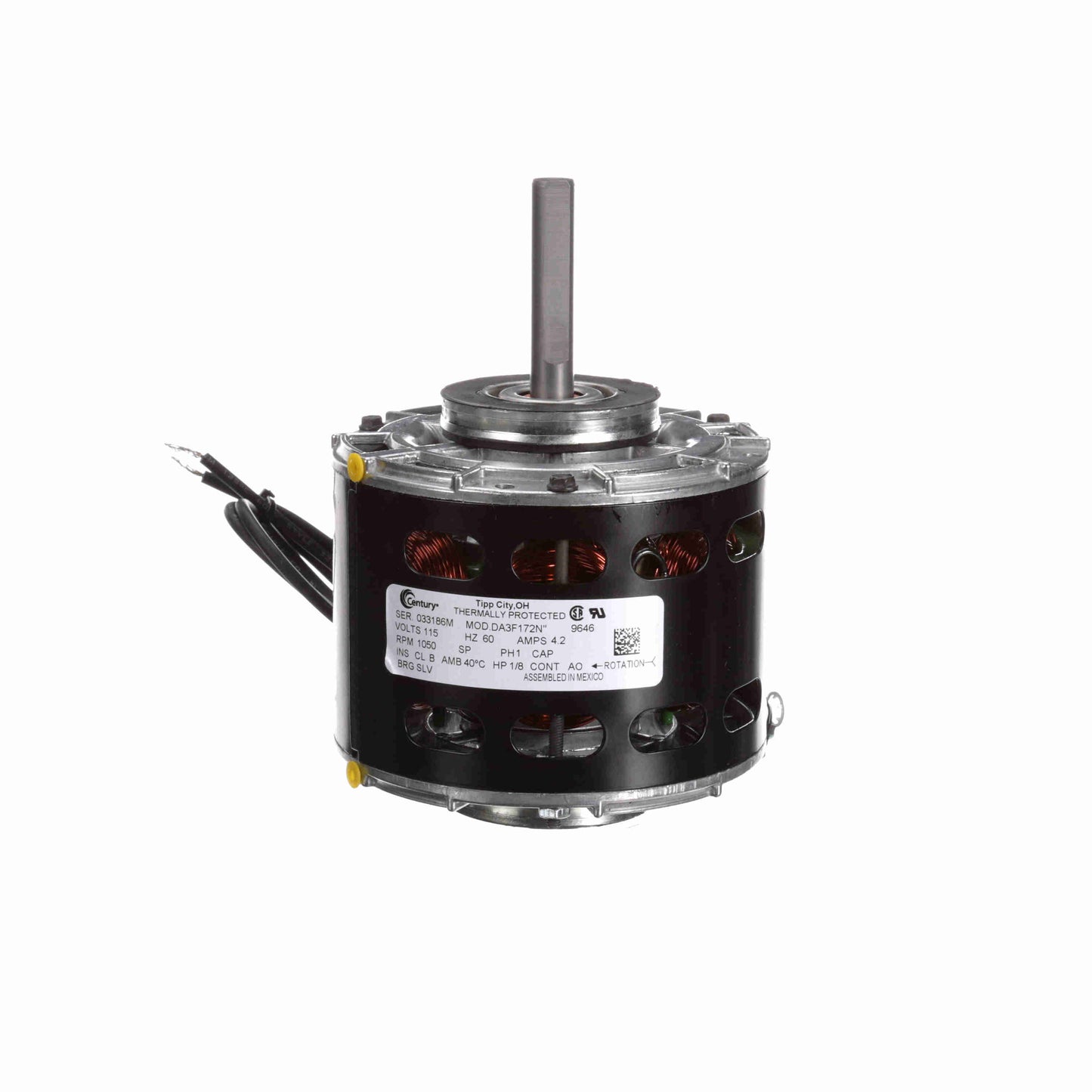

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 12" Leads
- Resilient Mounting Ring Shaft End and Lead End, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current4.2 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight8.00 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame42Y
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.17 in
Shaft Diameter0.500 in
Shaft Extension2.9 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
