category:
Electric Motors
country_of_origin:
MX
height:
8.78
length:
15.66
manufacturer:
Century
mpn:
680A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
15
width:
9.13

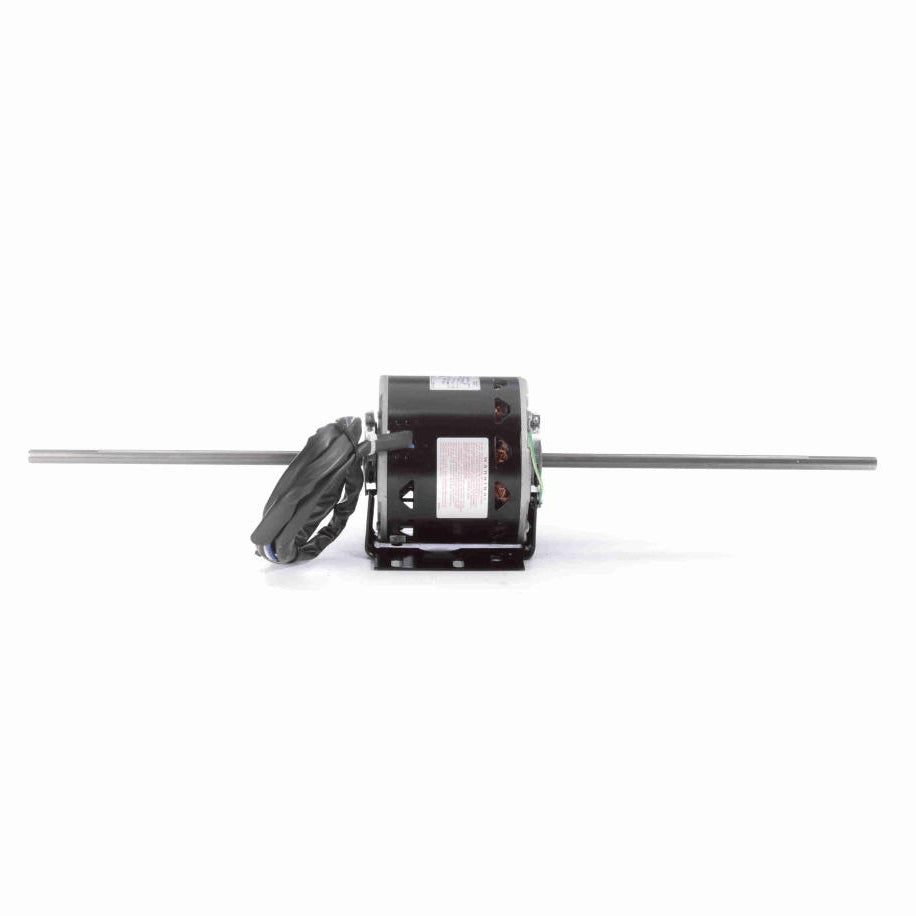

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Double Shaft with Flat
- 49" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed775/650/525 rpm
Current1.5 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight15.00 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
FrameF48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationCounterclockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.25 in
Shaft Diameter0.500 in
Shaft Extension11.5 X.5X11.6 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
Efficiency42.8 %
