category:
Electric Motors
height:
6.81
length:
13.78
manufacturer:
Century
mpn:
ORM1008
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
6.42

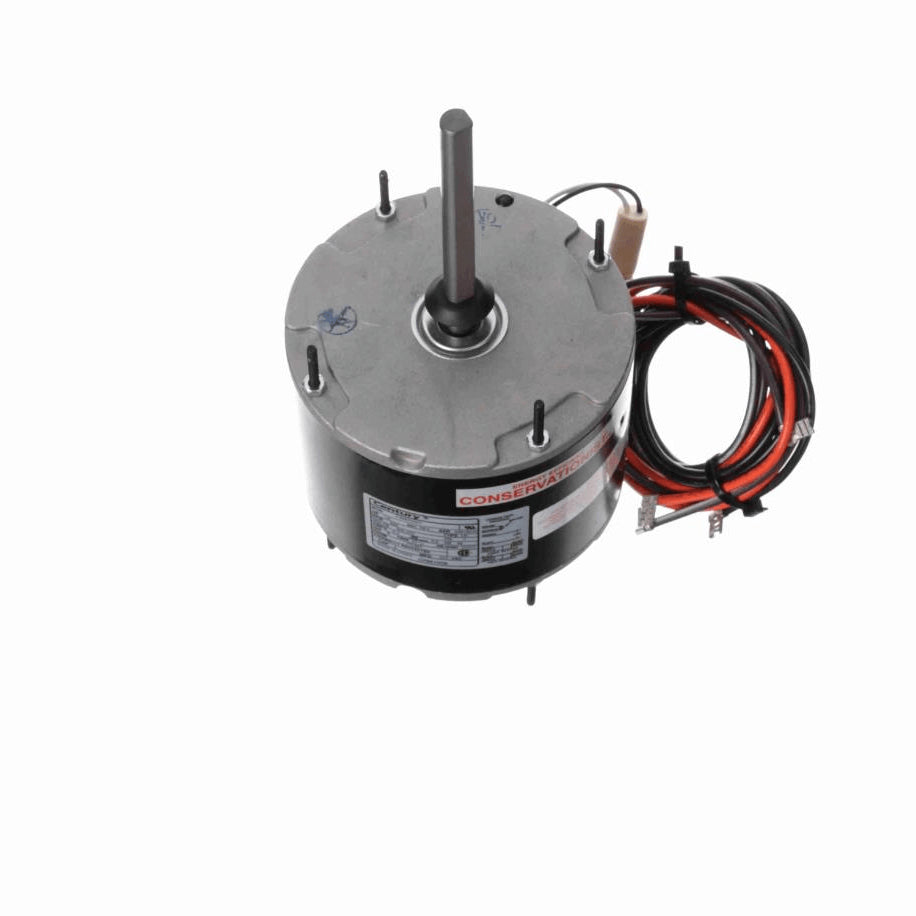

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 50°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 40" Leads with Flag Terminals
- Extended Studs Shaft end and Lead End, Mounting Holes in Shell.
Additional Information
Thermal ProtectionAutomatic
Speed825 rpm
Current0.7 A
Number of Speeds1
Ambient Temperature50 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length3.56 in
Shaft Diameter0.500 in
Shaft Extension4.8 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
