category:
Electric Motors
country_of_origin:
TW
height:
7.37
length:
12.18
manufacturer:
Century
mpn:
ORM1008V1
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
7.31

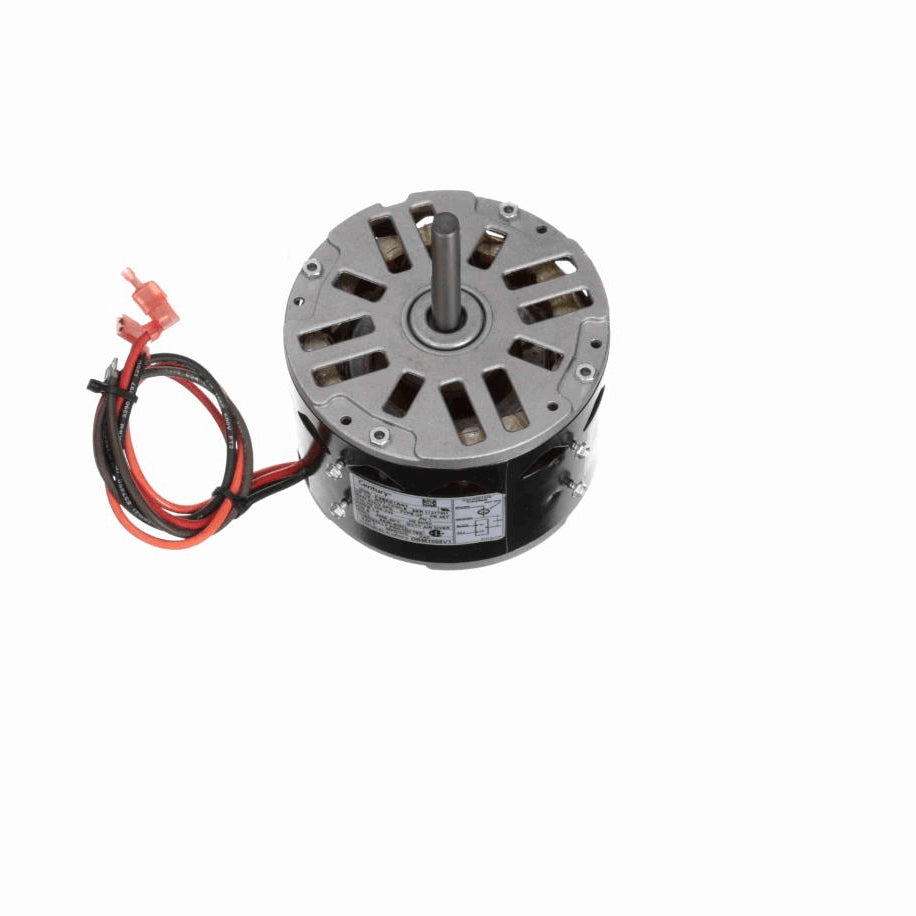

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 14" Leads with Flag Terminals
- Mounting Holes in Shell
Additional Information
Thermal ProtectionAutomatic
Speed825 rpm
Current1.4 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationCounterclockwise Lead End
MountingRound Belly Band
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.25 in
Shaft Diameter0.500 in
Shaft Extension2.7 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
