category:
Electric Motors
country_of_origin:
MX
height:
7
length:
9
manufacturer:
Century
mpn:
OHS1004
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
9

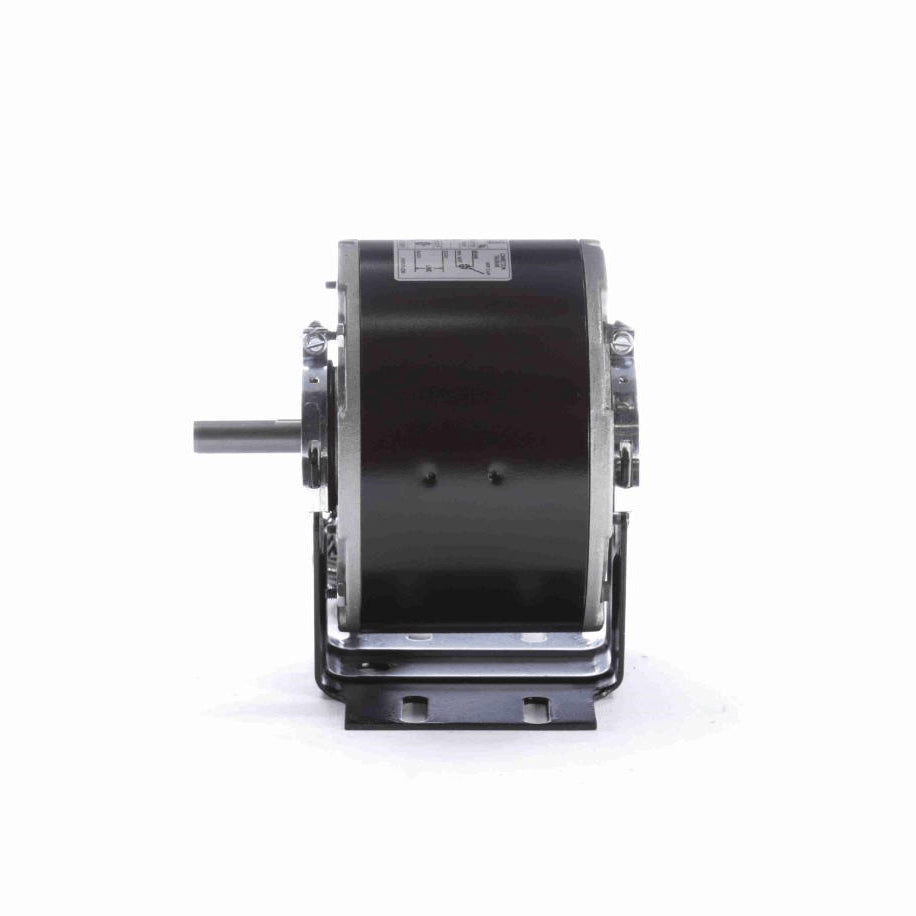

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 35" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current1 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.13 in
Shaft Diameter0.500 in
Shaft Extension2 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
