category:
Electric Motors
country_of_origin:
TW
height:
15
length:
10.5
manufacturer:
Century
mpn:
OLE1106H
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
25
width:
9

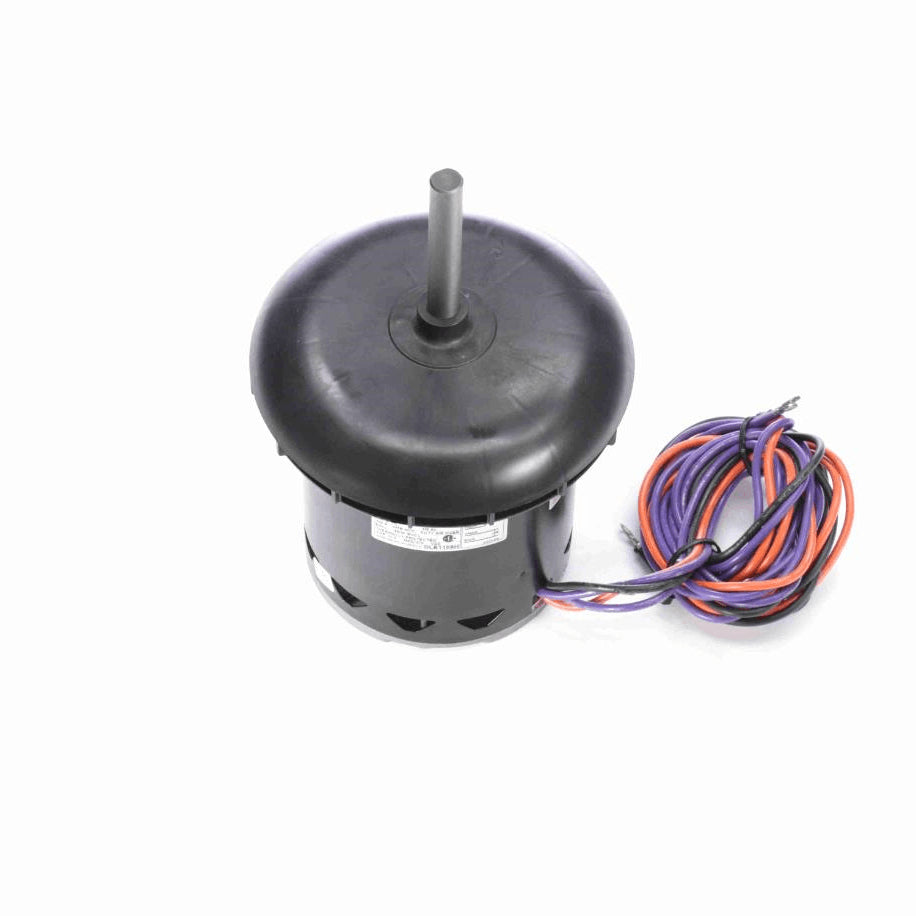

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Semi-Enclosed, Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 5/8" Diameter Shaft with Flat
- 68" Leads with Female Spade Terminals, 77" Leads with #10 Eyelet
- Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current2.9 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight25.00 LB
Country Of originMexico
Output HP1 Hp
Output KW0.75 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingRound Belly Band
Motor OrientationVertical Shaft Up
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.88 in
Shaft Diameter0.625 in
Shaft Extension3.63 in
HTC8501.40.6040
CEN
Starting MethodAcross The Line
