category:
Electric Motors
country_of_origin:
TW
height:
9
length:
23
manufacturer:
Century
mpn:
9406A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
23
width:
10

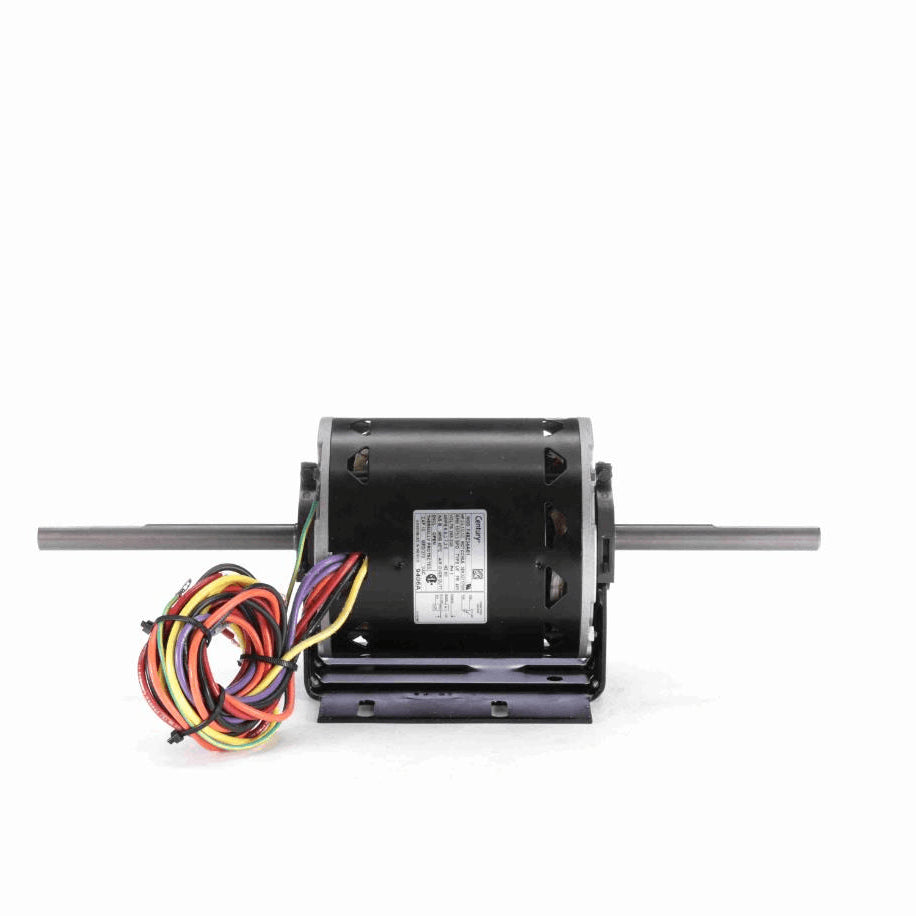

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/8" Diameter Double Shaft with Flat
- 54" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current6.6,3.7,2.5 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight23.00 LB
Country Of originMexico
Output HP3/4,1/2,1/3 Hp
Output KW0.56 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingResilient Base
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.63 in
Shaft Diameter0.625 in
Shaft Extension6.5 X .6 X 5.3 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
