category:
Electric Motors
country_of_origin:
TW
height:
7.37
length:
14.18
manufacturer:
Century
mpn:
ORM1076
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
19
width:
7.25

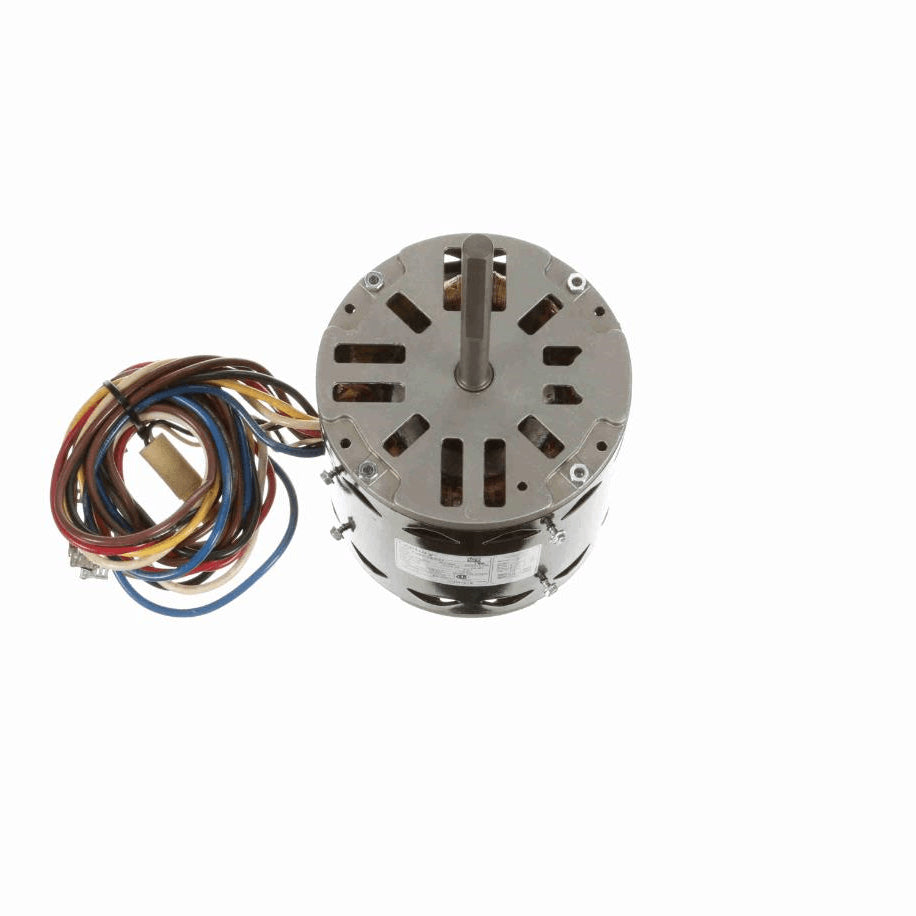

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 35" Power Leads with Flag Terminals, 28" Capacitor Leads with Flag Terminals
- Mounting Holes in Shell
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current10.5 A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight19.00 LB
Country Of originMexico
Output HP3/4 Hp
Output KW0.56 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingRound Belly Band
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.13 in
Shaft Diameter0.500 in
Shaft Extension5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
