category:
Electric Motors
country_of_origin:
TW
height:
8.5
length:
14
manufacturer:
Century
mpn:
OAN460
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
28
width:
8

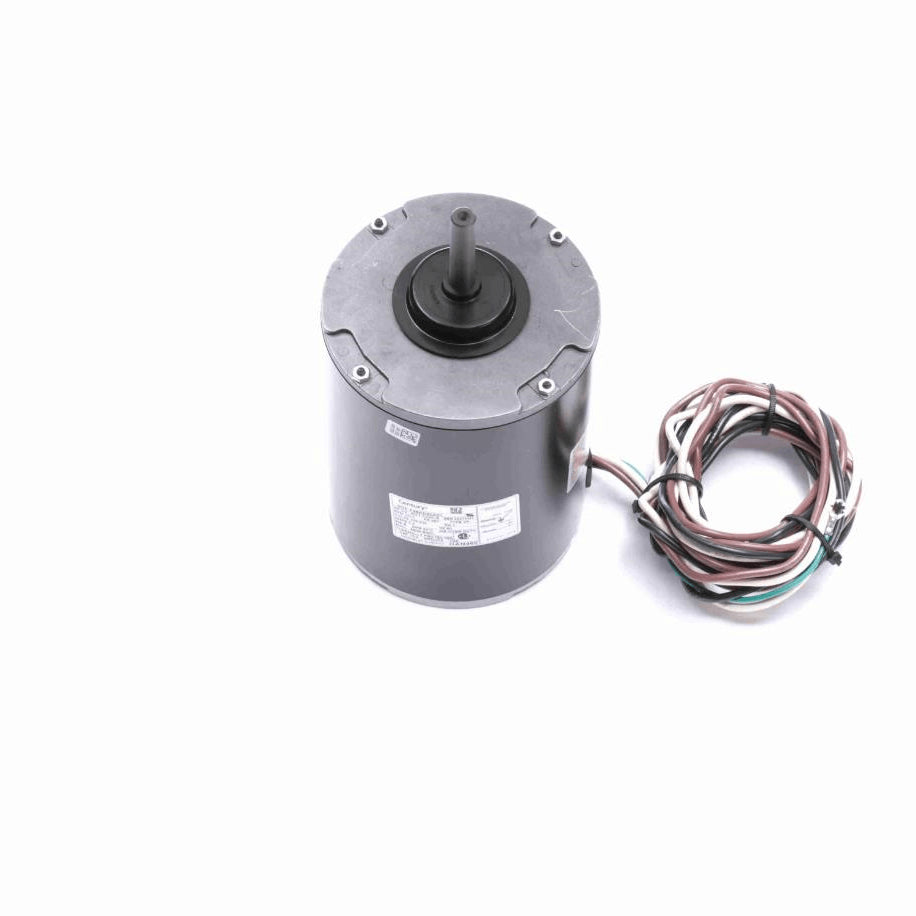

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 98" Leads with Quick Connect Terminals
- Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current5.4 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight28.00 LB
Country Of originMexico
Output HP3/4 Hp
Output KW0.56 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingRound Belly Band
Motor OrientationVertical Shaft Up
Drive End Bearing203 Ball
Opp Drive End Bearing203 Ball
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length7.36 in
Shaft Diameter0.500 in
Shaft Extension2-7/8 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
