category:
Electric Motors
country_of_origin:
TW
height:
7.37
length:
12.18
manufacturer:
Century
mpn:
OAN1076
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
19
width:
7.31

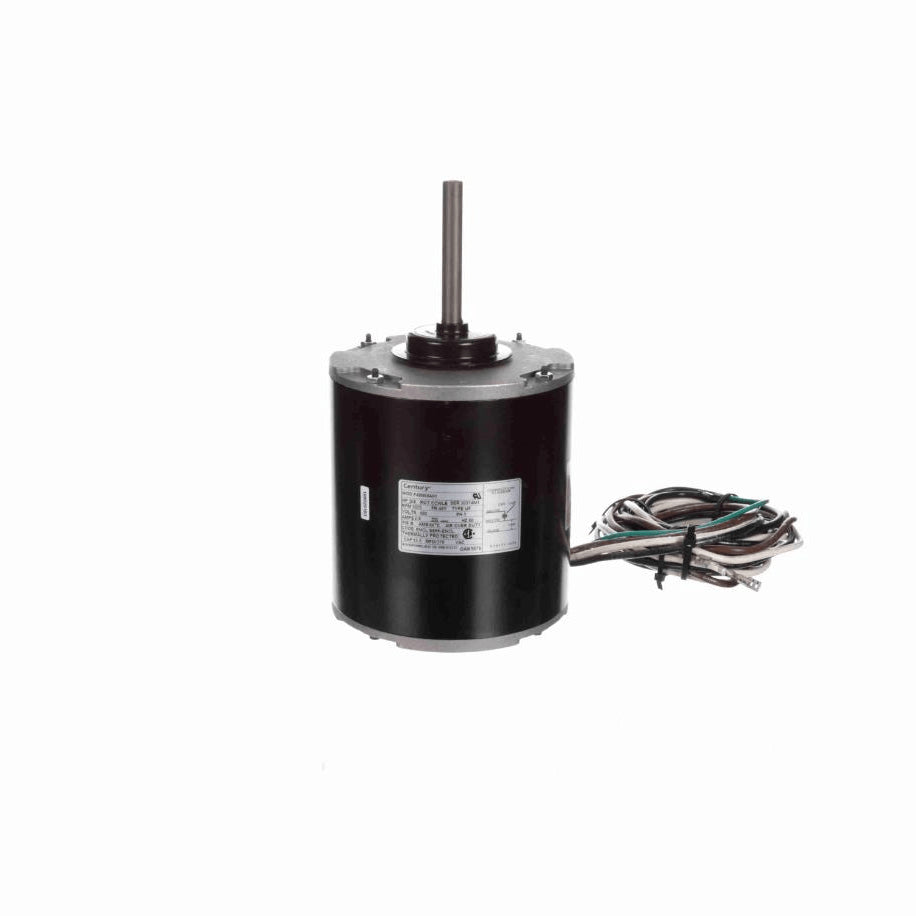

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 12.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Opposite Shaft End End-Frame, Enclosed Shaft End End-Frame and Shell, Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 98" Leads with Quick Connect Terminals
- Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current2.6 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight19.00 LB
Country Of originMexico
Output HP3/4 Hp
Output KW0.56 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingRound Belly Band
Motor OrientationVertical Shaft Up
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.38 in
Shaft Diameter0.500 in
Shaft Extension4 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
