category:
Electric Motors
country_of_origin:
TW
height:
7.37
length:
13.18
manufacturer:
Century
mpn:
OCA3076
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
27
width:
7.25

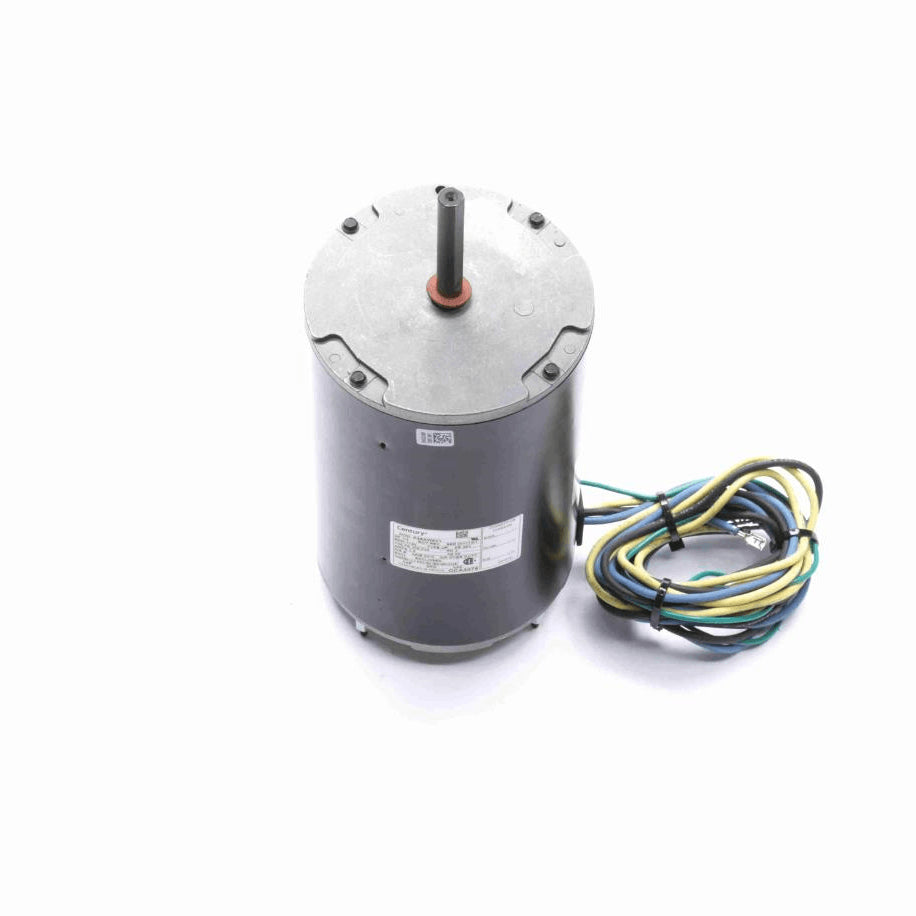

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Polyphase
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 60" Leads with Quick Connect Terminals
- Extended Studs Opposite Shaft End, Vertical Shaft Down
Additional Information
Thermal ProtectionAutomatic
Speed1140 rpm
Current3.8 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight27.00 LB
Country Of originMexico
Output HP3/4 Hp
Output KW0.56 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePolyphase
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationVertical Shaft Down
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length8.13 in
Shaft Diameter0.500 in
Shaft Extension3 in
HTC8501.51.4040
CEN
Starting MethodAcross The Line
