category:
Electric Motors
country_of_origin:
TW
height:
5.81
length:
8.87
manufacturer:
Century
mpn:
RF4400
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
5.81

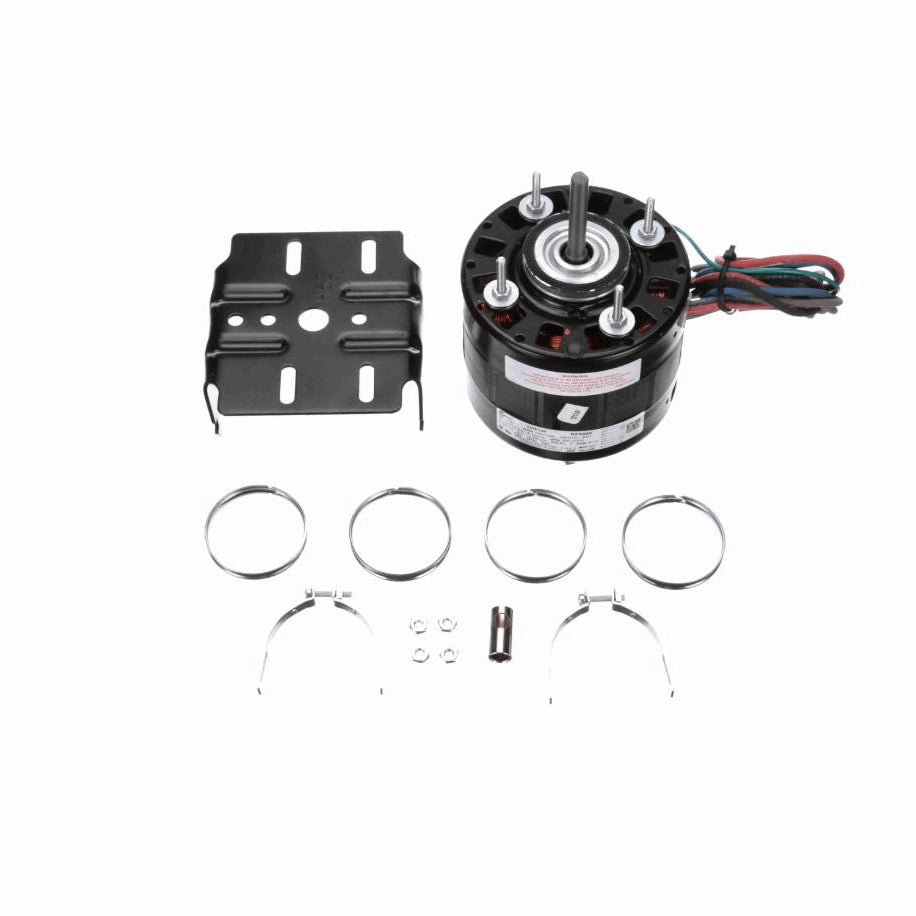

Product Overview
- Refrigeration - Unit Heater - Space Heater Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Lead End and Opposite Lead End End-Frame, Enclosed Shell, Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 29" Leads
- Extended Studs Shaft End, Resilient Mounting Rings Shaft End and Opposite Shaft End, Resilient Base Mounting Clamps, Mounting Ring Adaptors, and Hex Nuts Included
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current4.0/2.0 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension2.25 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
