category:
Electric Motors
country_of_origin:
MX
height:
7
length:
11
manufacturer:
Century
mpn:
9666
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
7.5

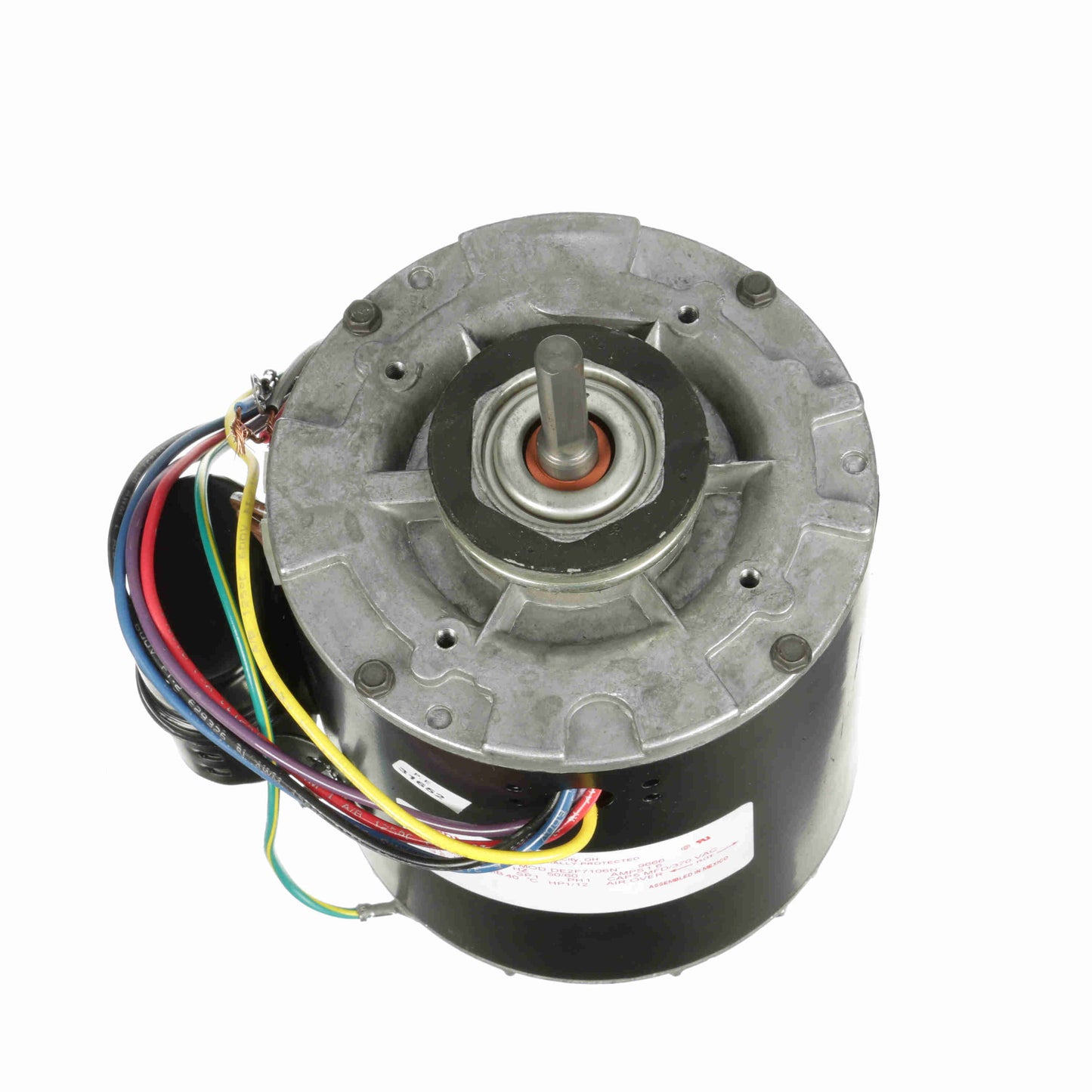

Product Overview
- Refrigeration - Unit Heater - Space Heater Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 12" Leads
- Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current1.6 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/12 Hp
Output KW0.06 kW
Service Factor1
Frame42Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.17 in
Shaft Diameter0.375 in
Shaft Extension2 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
