category:
Electric Motors
country_of_origin:
TW
height:
8
length:
11.22
manufacturer:
Century
mpn:
613A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
8

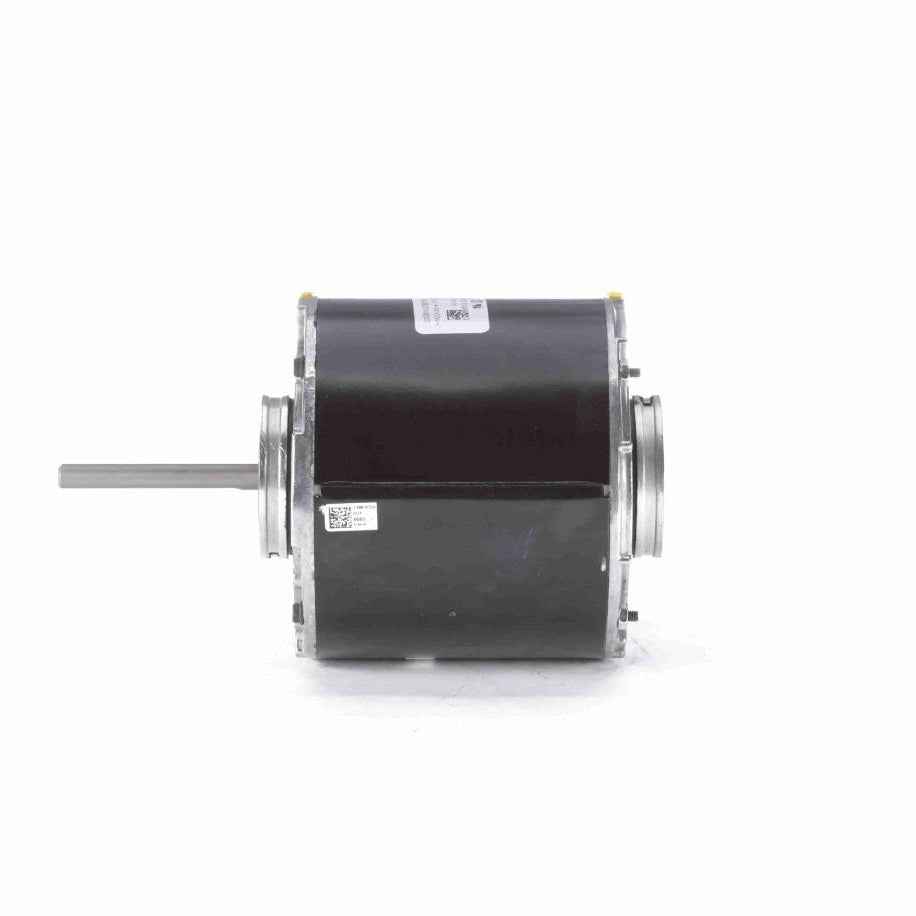

Product Overview
- Refrigeration - Unit Heater - Space Heater Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Semi-Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 30" Leads
- Resilient Ring Mounting
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current2.8/1.4-1.4 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight8.00 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame42Y
EnclosureSemi Enclosed
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingResilient Rings
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.50 in
Shaft Diameter0.375 in
Shaft Extension3.25 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
