category:
Electric Motors
height:
10
length:
13
manufacturer:
Century
mpn:
C722A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
16
width:
7
Product Overview

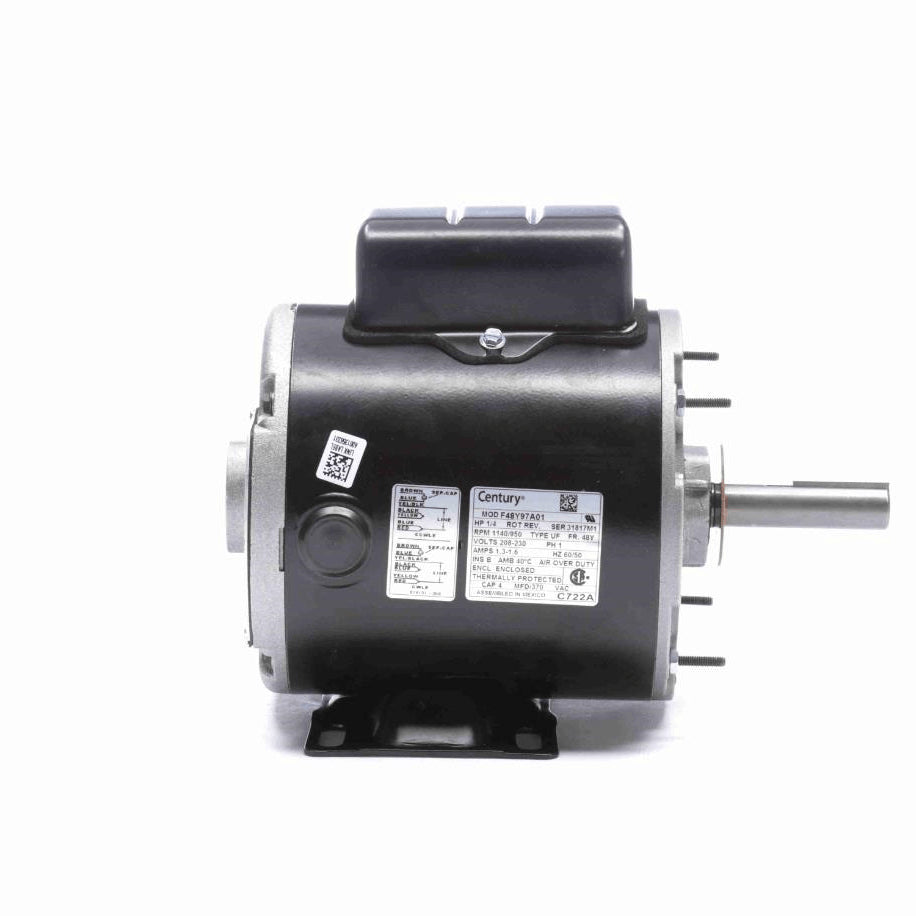

- Transformer Cooling Fan Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/8" Diameter Keyed Shaft
- Conduit Connection
- Rigid Base
Additional Information
Thermal ProtectionAutomatic
Speed1140/950 rpm
Current1.3-1.6 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight16.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
FrameF48Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingRigid Base
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeKeyed
Frame Length5.13 in
Shaft Diameter0.625 in
Shaft Extension3.0 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
