category:
Electric Motors
height:
5.81
length:
8.87
manufacturer:
Century
mpn:
U6432
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
5.81
Product Overview

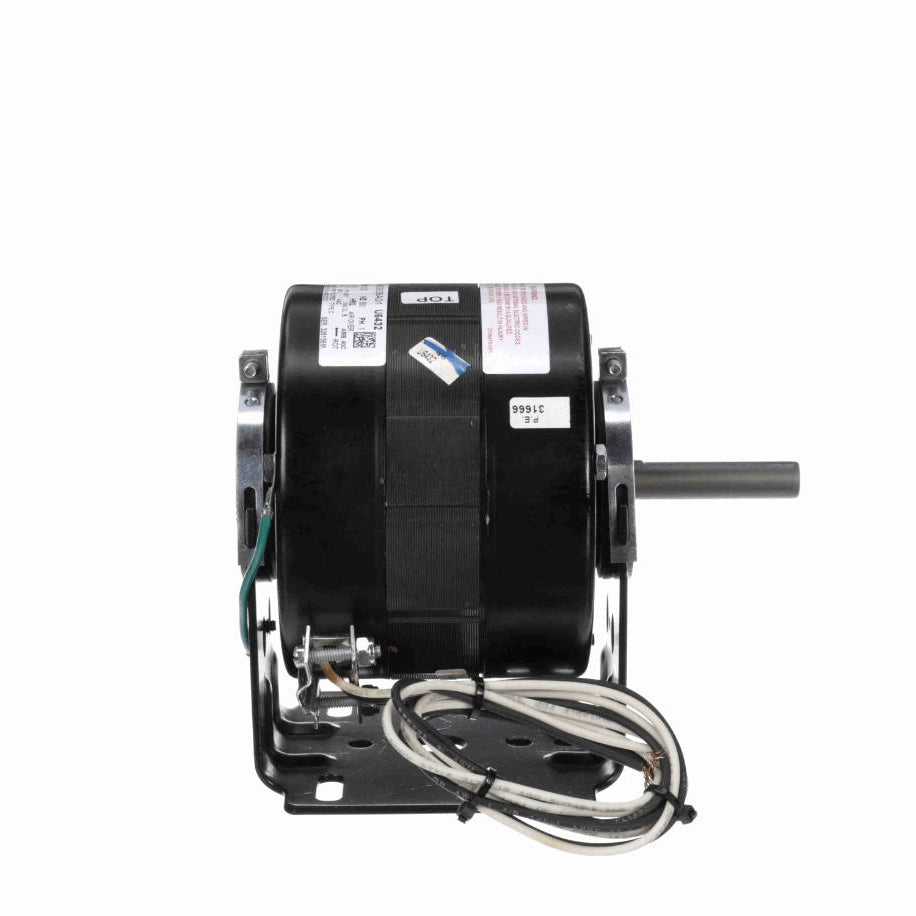

- Unit Heater Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 35" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current3.3 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame42Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension2.7 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
