category:
Electric Motors
height:
10
length:
16
manufacturer:
Century
mpn:
768A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
18
width:
8
Product Overview

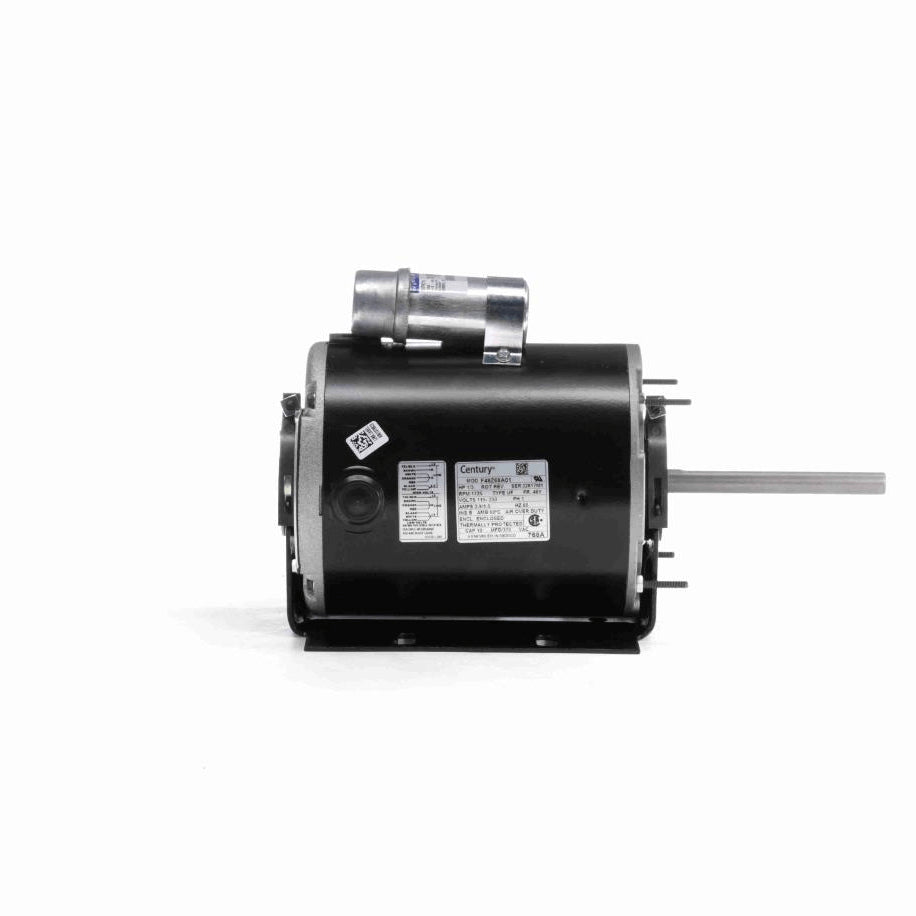

- Unit Heater Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 4" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1725 rpm
Current2.9/1.5 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight18.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
FrameF48Y
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length6.00 in
Shaft Diameter0.500 in
Shaft Extension5.00 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
