category:
Electric Motors
height:
7.9
length:
13.8
manufacturer:
Century
mpn:
UH1036
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
16
width:
7.6

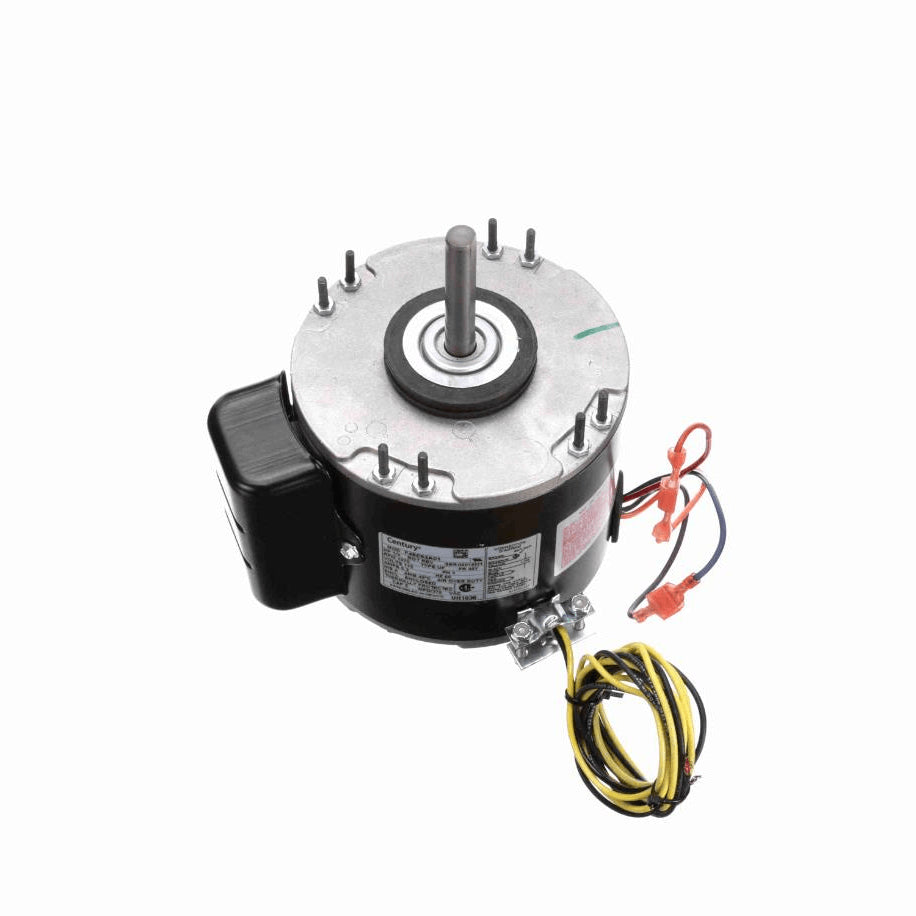

Product Overview
- Unit Heater Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 58" Leads
- Extended Studs Shaft End, Resilient Rings, Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current5.3 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight16.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.00 in
Shaft Diameter0.500 in
Shaft Extension3 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
