category:
Electric Motors
height:
8.5
length:
14
manufacturer:
Century
mpn:
566A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
15
width:
8

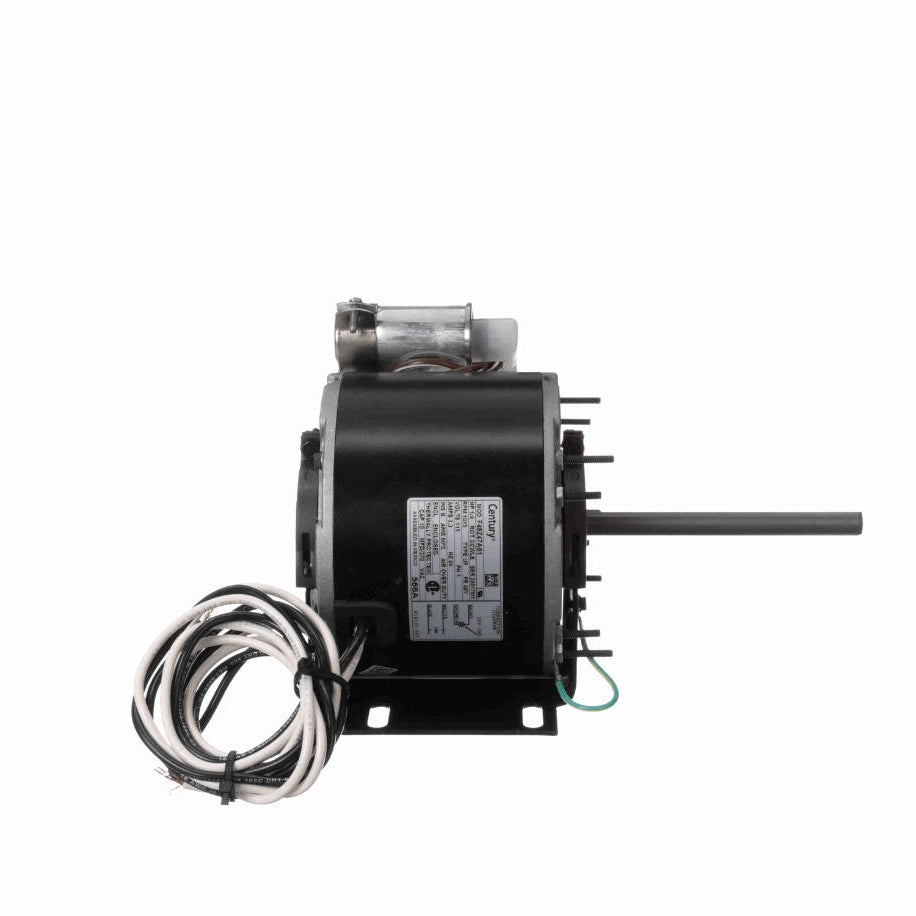

Product Overview
- Unit Heater Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 60" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current3.3 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight15.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
FrameF48Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length3.63 in
Shaft Diameter0.500 in
Shaft Extension5.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
