category:
Electric Motors
country_of_origin:
TW
height:
5.81
length:
8.87
manufacturer:
Century
mpn:
U6431
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
5.81
Product Overview

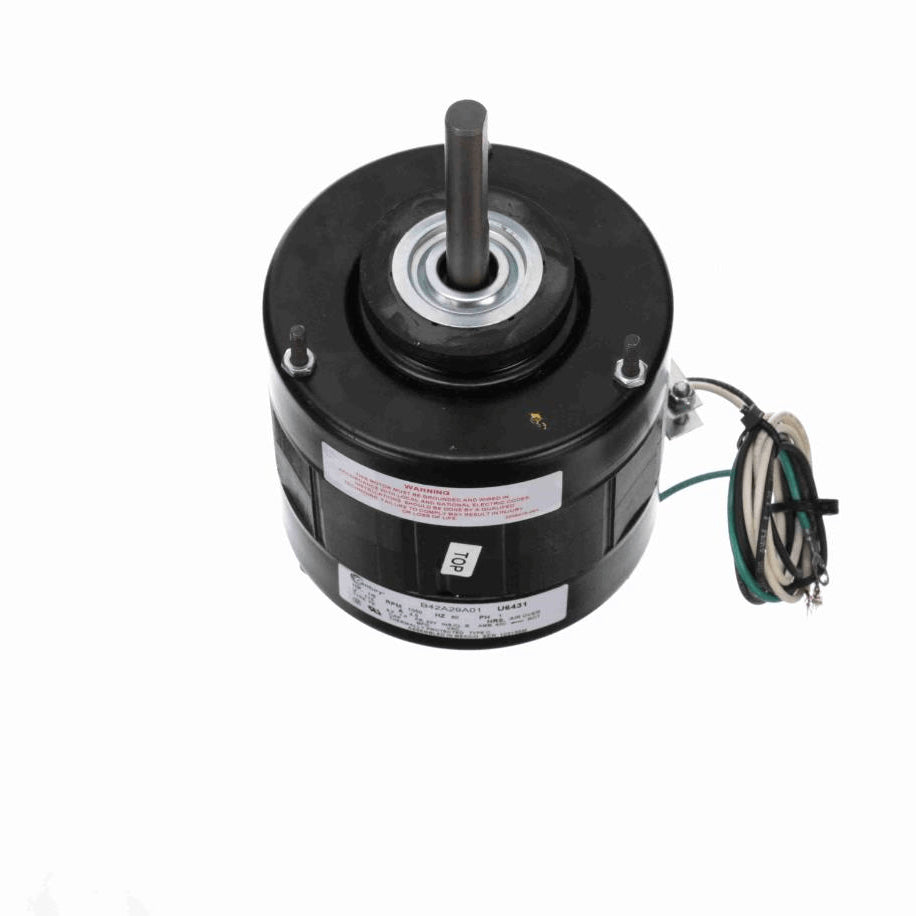

- Unit Heater Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 35" Leads
- Extended Studs Shaft End, Resilient Mounting Rings Shaft End and Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current4.5 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame42Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension3.3 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
