category:
Electric Motors
country_of_origin:
TW
height:
6.81
length:
8.87
manufacturer:
Century
mpn:
U6521
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
13
width:
6.81
Product Overview

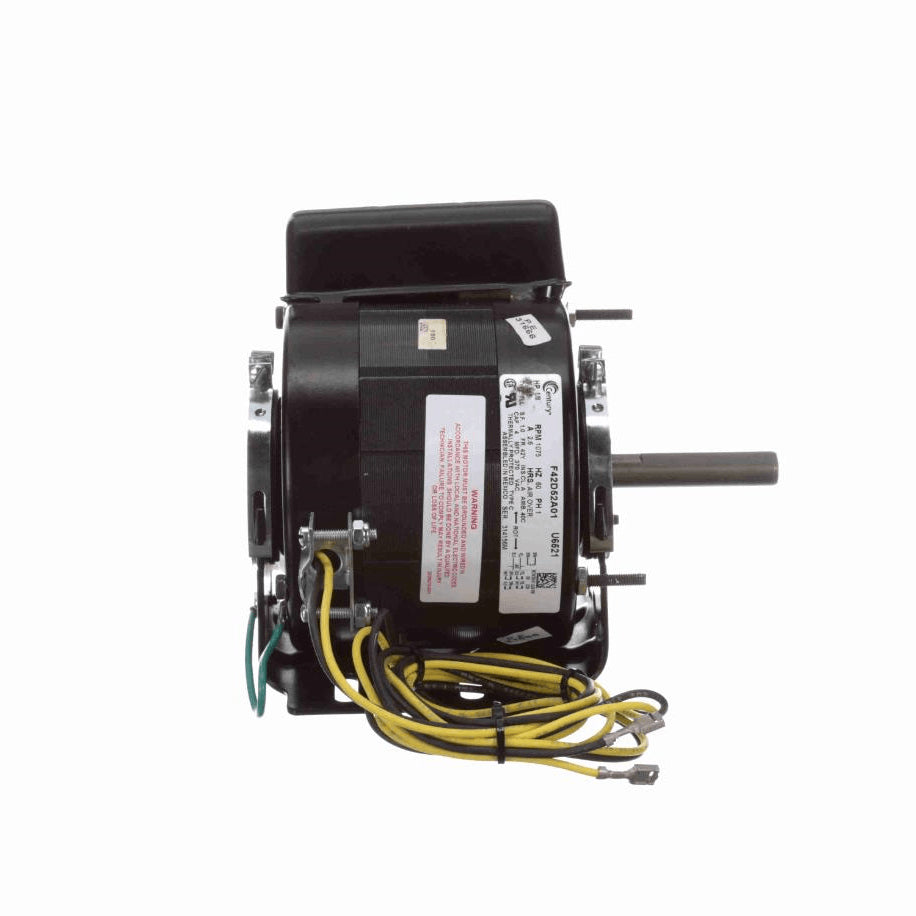

- Unit Heater Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 58" Power Leads with Female Spade Terminal
- Extended Studs Shaft End, Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current2.6 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight13.00 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame42Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension2.9 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
