category:
Electric Motors
country_of_origin:
TW
height:
7.28
length:
10.29
manufacturer:
Century
mpn:
84A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
7.28

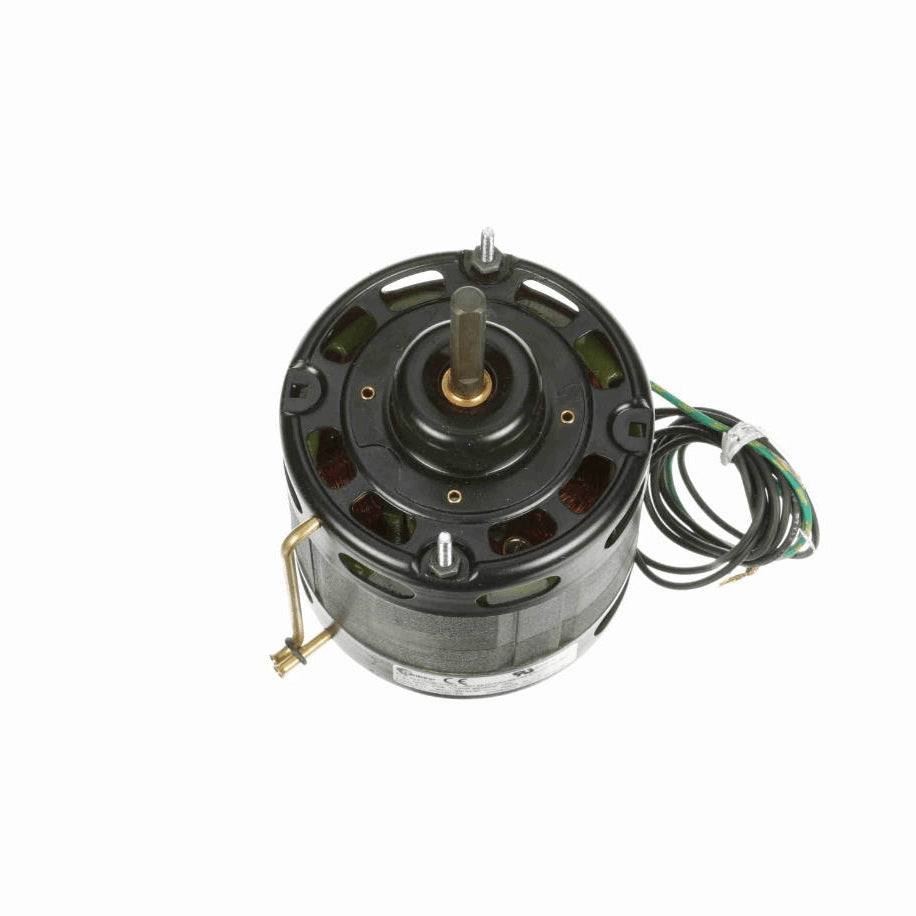

Product Overview
- Heating - Ventilating - Welding Unit Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 30" Leads
- Tapped Double Boss, 5 Cored Holes Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed850 rpm
Current4.0 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAN
Weight8.00 LB
Country Of originUnited Kingdom
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles6
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialN/A
Shaft TypeFlat
Frame Length4.00 in
Shaft Diameter0.375 in
Shaft Extension2 1/2 in
HTC8501.40.2040
CEY
Starting MethodAcross The Line
