category:
Electric Motors
country_of_origin:
TW
height:
8
length:
10.5
manufacturer:
Century
mpn:
309
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
7.5

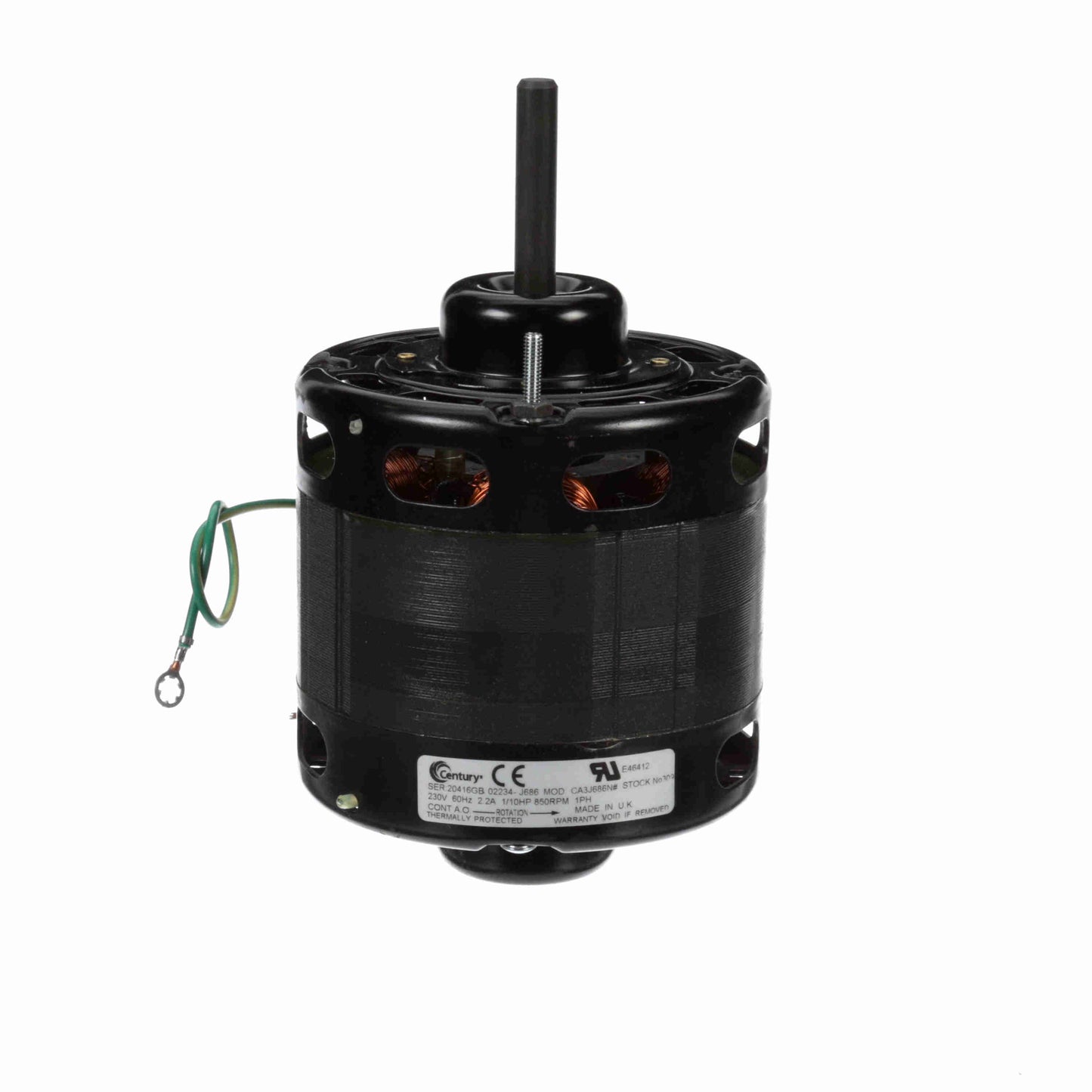

Product Overview
- Heating - Ventilating - Welding Unit Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 30" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed850 rpm
Current2.2 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight8.00 LB
Country Of originUnited Kingdom
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles8
RotationCounterclockwise Shaft End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension3/8 X 2 1/2 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
