category:
Electric Motors
country_of_origin:
TW
height:
7.28
length:
9.29
manufacturer:
Century
mpn:
44A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5.45
width:
7.28

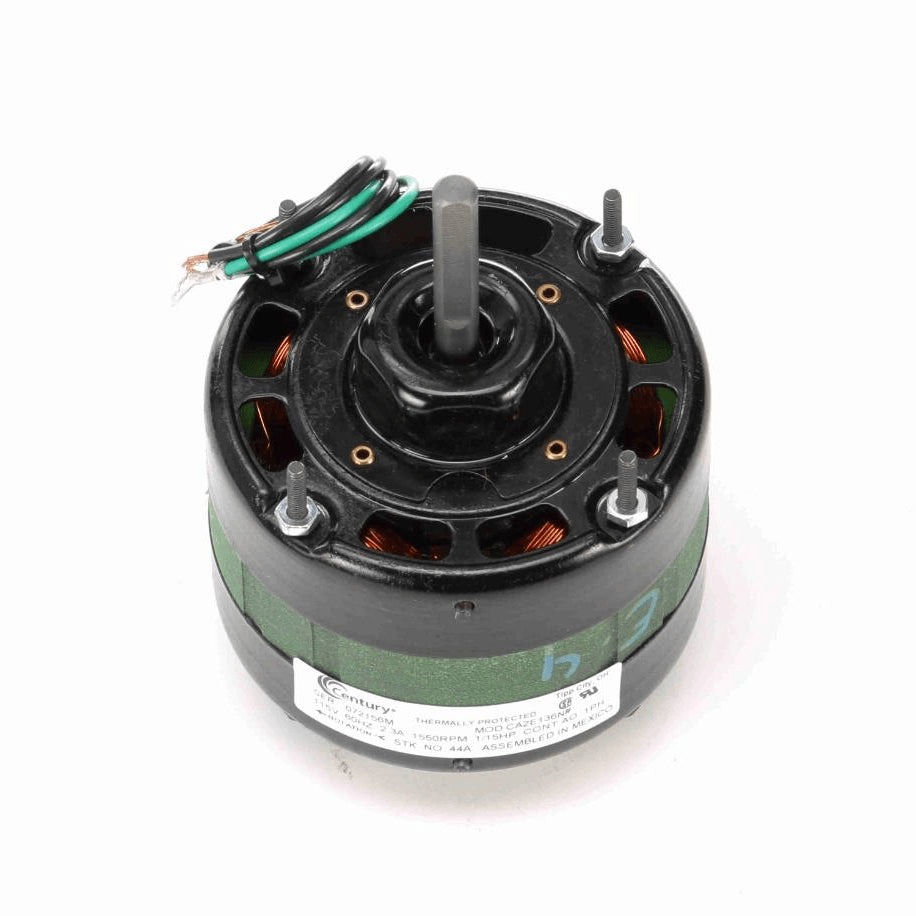

Product Overview
- Heating - Ventilating - Welding Unit Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current2.3 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight5.45 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialN/A
Shaft TypeFlat
Frame Length3.00 in
Shaft Diameter0.375 in
Shaft Extension2.54 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
