category:
Electric Motors
height:
8
length:
10.5
manufacturer:
Century
mpn:
305
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
7
width:
7.5

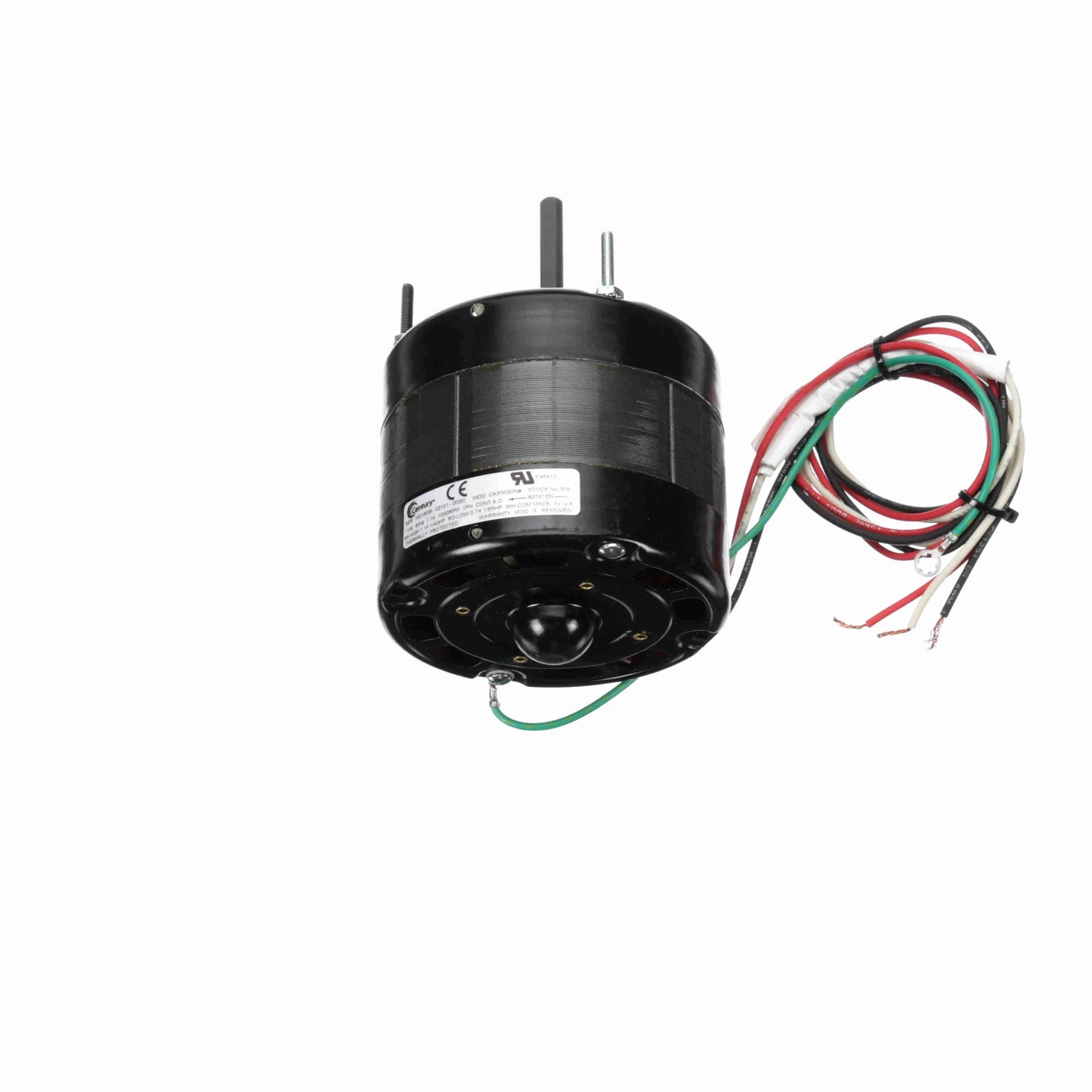

Product Overview
- Heating - Ventilating - Welding Unit Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 36" Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current1.1/.70 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAN
Weight7.00 LB
Country Of originUnited Kingdom
Output HP1/40-1/65 Hp
Output KW0.02 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles6
RotationClockwise Shaft End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.312 in
Shaft Extension5/16 X 2 1/2 in
HTC8501.10.6020
CEY
Starting MethodAcross The Line
