Daikin 36,000 BTU 22 SEER Dual Zone Wall Mounted Emura White Daikin Mini-Split Heat Pump System 9+18

Daikin 36,000 BTU 22 SEER Dual Zone Wall Mounted Emura White Daikin Mini-Split Heat Pump System 9+18

Dropship

SKU SKU:kpi032-4MXL36TVJUFTXR09TVJUWFTXR18TVJUW

Regular price $5,894.29 USD
Regular price Sale price $5,894.29 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Mini Splits & Commercial Air Conditioners
manufacturer: Daikin
mpn: 4MXL36TVJUFTXR09TVJUWFTXR18TVJUW

Product Overview

36,000 BTU 21.7 SEER Daikin Mini-Split MXL Multi Zone Heat Pump Condenser

The Daikin Multi Zone MXL Series is the perfect fit for multi-room applications. You can connect two, three, or four indoor units to a single outdoor unit. The ability to choose from wall mount, duct units, floor mount, or ceiling cassette units offers you over 1000 combinations for your installation needs. The system also offers up to 21.7 SEER for home comfort and energy savings. The MXL Series also provides enhanced capacity performance in extreme heat and cold ambient conditions. With long-life filters and quiet operation, the MXL Series is a reliable and efficient solution for your home.With ductless mini-split systems, each room can be controlled separately using wireless or wired remotes. The MXL Series is compatible with Emura, Vista, FTXS, FVXS, FDMQ, and FDXS/CDXS indoor units, allowing you to blend them in almost invisibly with your home's existing furnishings.

Features

  • Heat Pump This system provides heating and cooling.
  • Aurora Heat Pump for extreme weather conditions
  • Outdoor Unit Quiet Operation This feature allows you to reduce the outdoor unit's sound levels by 3 dB at times when quieter operation is needed.
  • Auto-Restart This feature enables unit to memorize operation mode, airflow, and temperature settings. If there is a power failure while the unit is running, it will return to those same operating settings once the power is restored.
  • Intelligent Defrost Mode The outdoor unit can enable this mode to prevent frost and ice build up in cold climate conditions. This mode also helps deliver long hearing time for additional comfort.

Additional Information

MPN4MXL36TVJU
Refrigerant Charge precharged for: 131'
Weight (in lbs) 214.000000
AHRI Certificate Number 202522139, 202521824, 202522140
Brand/Manufacturer Daikin
Additional Information Heat Pump
Additional Information Precharged for: 131'
Additional Information Maximum Line Set Length: 98'
Additional Information Maximum System Line Set Length: 230'
Additional Information Number of Zones: 2-4
HSPF 11.2
Cooling BTU 34400
Heating BTU 36600
Decibel Level (dBA) 53-55
Energy Star Yes
Refrigerant R410A
EER 12.5
Compressor Type Swing
Liquid Line 1/4" (4)
Suction Line 3/8" (1), 1/2" (2), 5/8" (1)
Electrical 208/230v 1 Phase 60 Hz
Max Breaker Size 35 Amps
Min. Breaker Size 32.5 Amps
Tonnage 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating -13°F - 60°F
Min/Max Outdoor Temp for Cooling 14°F - 115°F
Zone Compatibility Multi Zone
Height 34-1/4"
Width 43-5/16"
Depth 18-1/8"
Warranty 12 Years with Online Registration

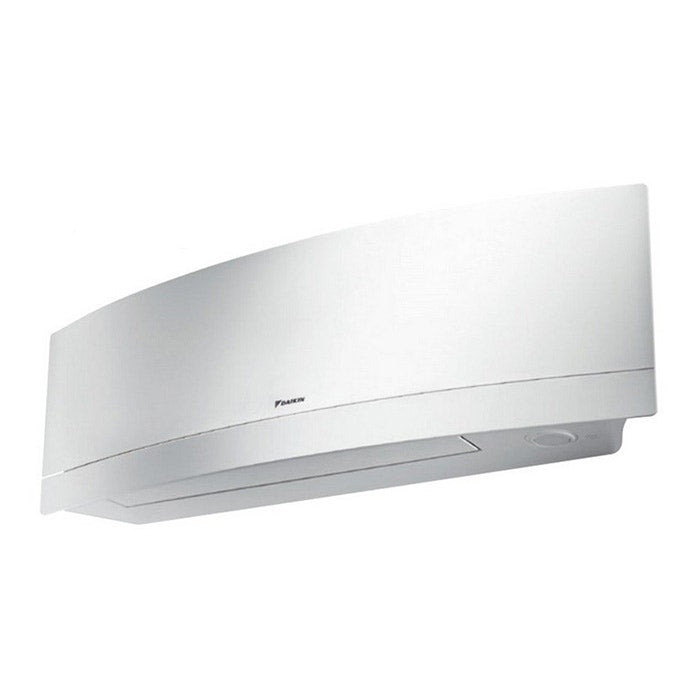

9,000 BTU Wall Mounted Daikin Mini-Split Multi Zone Emura White - Air Handler

The Daikin Emura indoor unit balances form and function, pairing smart home technology with a sleek appearance. Available in silver or matte white, the Emura makes a statement on your walls while also providing exceptional climate control. Daikin inverter technology prevents temperature fluctuations for energy efficiency. It runs quietly at dB, so you won't even notice it's running. And, with a wide range of operating temperatures, it's sure to provide comfort no matter the weather outside. With a standard wireless remote and option to control your unit from the Daikin Comfort Control app on your phone, the Daikin Emura provides unmatched comfort and elegance.

Features

  • Daikin Comfort App With this app, your smartphone becomes your comfort system's remote control.
  • 3D Airflow This feature combines the horizontal and vertical auto-swing, circulating cool or warm air throughout the room, even to corners of large spaces.
  • Comfort Mode This feature adjusts the flap in the indoor unit to prevent cool air from being blown directly onto the body. It also ensures that warm air is directed to the bottom of the room when the unit is heating.
  • Intelligent Eye An infrared sensor detects movement in the room. When the room is occupied, the unit will operate normally. If the room is vacant for more than 20 minutes, the unit automatically switches to an energy-saving mode.
  • Titanium Apatite Photocatalytic Air-Purifying Filter This feature combines an air-purifying filter and a deodorizing filter. It can last up to three years if it is washed every six months.
  • Night Set Mode This energy-saving feature prevents sudden changes in room temperature, allowing you to sleep comfortably. By reducing temperature fluctuations, it also saves energy. It uses the Timer-OFF Circuit to gently raise or lower the room temperature before the unit stops.
  • Auto-Restart This feature enables unit to memorize operation mode, airflow, and temperature settings. If there is a power failure while the unit is running, it will return to those same operating settings once the power is restored.

Additional Information

MPNFTXR09TVJUW
Weight (in lbs) 27.000000
Brand/Manufacturer Daikin
Additional Information Drain: 11/16"
Cooling BTU 9000
Heating BTU 9000
Maximum CFM 117-346 CFM
Decibel Level (dBA) 19-41
Refrigerant R410A
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230v 1 Phase 60 Hz
BTU/Tonnage 9,000 BTU/0.75 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Multi Zone
Height 11-15/16"
Width 39-5/16"
Depth 8-3/8"
Warranty 12 Years with Online Registration

18,000 BTU Wall Mounted Daikin Mini-Split Multi Zone Emura White - Air Handler

The Daikin Emura indoor unit balances form and function, pairing smart home technology with a sleek appearance. Available in silver or matte white, the Emura makes a statement on your walls while also providing exceptional climate control. Daikin inverter technology prevents temperature fluctuations for energy efficiency. It runs quietly at dB, so you won't even notice it's running. And, with a wide range of operating temperatures, it's sure to provide comfort no matter the weather outside. With a standard wireless remote and option to control your unit from the Daikin Comfort Control app on your phone, the Daikin Emura provides unmatched comfort and elegance.

Features

  • Daikin Comfort App With this app, your smartphone becomes your comfort system's remote control.
  • 3D Airflow This feature combines the horizontal and vertical auto-swing, circulating cool or warm air throughout the room, even to corners of large spaces.
  • Comfort Mode This feature adjusts the flap in the indoor unit to prevent cool air from being blown directly onto the body. It also ensures that warm air is directed to the bottom of the room when the unit is heating.
  • Intelligent Eye An infrared sensor detects movement in the room. When the room is occupied, the unit will operate normally. If the room is vacant for more than 20 minutes, the unit automatically switches to an energy-saving mode.
  • Titanium Apatite Photocatalytic Air-Purifying Filter This feature combines an air-purifying filter and a deodorizing filter. It can last up to three years if it is washed every six months.
  • Night Set Mode This energy-saving feature prevents sudden changes in room temperature, allowing you to sleep comfortably. By reducing temperature fluctuations, it also saves energy. It uses the Timer-OFF Circuit to gently raise or lower the room temperature before the unit stops.
  • Auto-Restart This feature enables unit to memorize operation mode, airflow, and temperature settings. If there is a power failure while the unit is running, it will return to those same operating settings once the power is restored.

Additional Information

MPNFTXR18TVJUW
Weight (in lbs) 27.000000
Brand/Manufacturer Daikin
Additional Information Drain: 11/16"
Cooling BTU 18000
Heating BTU 18000
Maximum CFM 208-413 CFM
Decibel Level (dBA) 30-47
Refrigerant R410A
Liquid Line 1/4"
Suction Line 1/2"
Electrical 208/230v 1 Phase 60 Hz
BTU/Tonnage 18,000 BTU/1.5 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Multi Zone
Height 11-15/16"
Width 39-5/16"
Depth 8-3/8"
Warranty 12 Years with Online Registration
