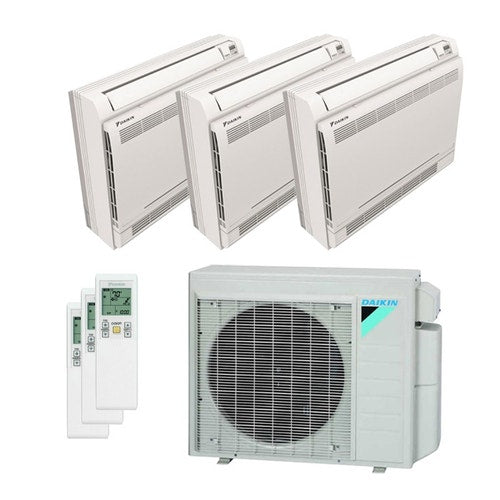

Daikin 36,000 BTU 22 SEER Tri Zone Floor Mounted Daikin Mini-Split Heat Pump System 9+12+15

Daikin 36,000 BTU 22 SEER Tri Zone Floor Mounted Daikin Mini-Split Heat Pump System 9+12+15

Dropship

SKU SKU:kpi032-4MXL36TVJUFVXS09NVJUFVXS12NVJUFVXS15NVJU

Regular price $6,852.86 USD
Regular price Sale price $6,852.86 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Mini Splits & Commercial Air Conditioners
manufacturer: Daikin
mpn: 4MXL36TVJUFVXS09NVJUFVXS12NVJUFVXS15NVJU

Product Overview

36,000 BTU 21.7 SEER Daikin Mini-Split MXL Multi Zone Heat Pump Condenser

The Daikin Multi Zone MXL Series is the perfect fit for multi-room applications. You can connect two, three, or four indoor units to a single outdoor unit. The ability to choose from wall mount, duct units, floor mount, or ceiling cassette units offers you over 1000 combinations for your installation needs. The system also offers up to 21.7 SEER for home comfort and energy savings. The MXL Series also provides enhanced capacity performance in extreme heat and cold ambient conditions. With long-life filters and quiet operation, the MXL Series is a reliable and efficient solution for your home.With ductless mini-split systems, each room can be controlled separately using wireless or wired remotes. The MXL Series is compatible with Emura, Vista, FTXS, FVXS, FDMQ, and FDXS/CDXS indoor units, allowing you to blend them in almost invisibly with your home's existing furnishings.

Features

  • Heat Pump This system provides heating and cooling.
  • Aurora Heat Pump for extreme weather conditions
  • Outdoor Unit Quiet Operation This feature allows you to reduce the outdoor unit's sound levels by 3 dB at times when quieter operation is needed.
  • Auto-Restart This feature enables unit to memorize operation mode, airflow, and temperature settings. If there is a power failure while the unit is running, it will return to those same operating settings once the power is restored.
  • Intelligent Defrost Mode The outdoor unit can enable this mode to prevent frost and ice build up in cold climate conditions. This mode also helps deliver long hearing time for additional comfort.

Additional Information

MPN4MXL36TVJU
Refrigerant Charge precharged for: 131'
Weight (in lbs) 214.000000
AHRI Certificate Number 202522139, 202521824, 202522140
Brand/Manufacturer Daikin
Additional Information Heat Pump
Additional Information Precharged for: 131'
Additional Information Maximum Line Set Length: 98'
Additional Information Maximum System Line Set Length: 230'
Additional Information Number of Zones: 2-4
HSPF 11.2
Cooling BTU 34400
Heating BTU 36600
Decibel Level (dBA) 53-55
Energy Star Yes
Refrigerant R410A
EER 12.5
Compressor Type Swing
Liquid Line 1/4" (4)
Suction Line 3/8" (1), 1/2" (2), 5/8" (1)
Electrical 208/230v 1 Phase 60 Hz
Max Breaker Size 35 Amps
Min. Breaker Size 32.5 Amps
Tonnage 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating -13°F - 60°F
Min/Max Outdoor Temp for Cooling 14°F - 115°F
Zone Compatibility Multi Zone
Height 34-1/4"
Width 43-5/16"
Depth 18-1/8"
Warranty 12 Years with Online Registration

9,000 BTU Floor Mounted Daikin Mini-Split Multi Zone FVXS - Air Handler

The Daikin FVXS floor mounted unit is easy to install. It can be set up in various configurations, either on the floor or hanging low on a wall. Because it has a low height, it's easy to fit underneath windows. The floor mounted unit has an airflow pattern that is ideal for heating spaces. It also boasts an indoor sound pressure as low as db(A) and a program dry function to reduce humidity without causing temperature fluctuations. With a 12 year limited warranty, this floor mounted unit is an excellent replacement for traditional radiant systems for your home.Ductless mini-split heat pump systems are perfect for old and new homes or buildings, regardless of whether they have existing ductwork installed. Couple that with Daikin's beautifully designed indoor air handlers and you have elegance and efficiency that will last for years to come, guaranteed.

Features

  • Auto-Restart This feature enables unit to memorize operation mode, airflow, and temperature settings. If there is a power failure while the unit is running, it will return to those same operating settings once the power is restored.
  • Titanium Apatite Photocatalytic Air-Purifying Filter This feature combines an air-purifying filter and a deodorizing filter. It can last up to three years if it is washed every six months.
  • Program Dry Function This feature prioritizes reducing the humidity levels in a room without causing fluctuations in room temperature.
  • Comfort Mode This feature adjusts the flap in the indoor unit to prevent cool air from being blown directly onto the body. It also ensures that warm air is directed to the bottom of the room when the unit is heating.
  • Hot Start This feature prevents the unit for releasing a cold draft into the room when heating starts or when the unit changes from cooling to heating.
  • Powerful Operation When you push the POWERFUL button on the remote, the unit will get a 20 minute boost in cooling or heating power, even if it is already operating at high capacity.

Additional Information

MPNFVXS09NVJU
Weight (in lbs) 31.000000
Brand/Manufacturer Daikin
Additional Information Drain: 13/16"
Cooling BTU 9000
Heating BTU 9000
Maximum CFM 145-311 CFM
Decibel Level (dBA) 23-38
Refrigerant R410A
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230v 1 Phase 60 Hz
BTU/Tonnage 9,000 BTU/0.75 Ton
Mini-Split Type Floor Mounted
Zone Compatibility Multi Zone
Height 23-5/8"
Width 27-9/16"
Depth 8-1/4"
Warranty 12 Years with Online Registration

12,000 BTU Floor Mounted Daikin Mini-Split Multi Zone FVXS - Air Handler

The Daikin FVXS floor mounted unit is easy to install. It can be set up in various configurations, either on the floor or hanging low on a wall. Because it has a low height, it's easy to fit underneath windows. The floor mounted unit has an airflow pattern that is ideal for heating spaces. It also boasts an indoor sound pressure as low as db(A) and a program dry function to reduce humidity without causing temperature fluctuations. With a 12 year limited warranty, this floor mounted unit is an excellent replacement for traditional radiant systems for your home.Ductless mini-split heat pump systems are perfect for old and new homes or buildings, regardless of whether they have existing ductwork installed. Couple that with Daikin's beautifully designed indoor air handlers and you have elegance and efficiency that will last for years to come, guaranteed.

Features

  • Auto-Restart This feature enables unit to memorize operation mode, airflow, and temperature settings. If there is a power failure while the unit is running, it will return to those same operating settings once the power is restored.
  • Titanium Apatite Photocatalytic Air-Purifying Filter This feature combines an air-purifying filter and a deodorizing filter. It can last up to three years if it is washed every six months.
  • Program Dry Function This feature prioritizes reducing the humidity levels in a room without causing fluctuations in room temperature.
  • Comfort Mode This feature adjusts the flap in the indoor unit to prevent cool air from being blown directly onto the body. It also ensures that warm air is directed to the bottom of the room when the unit is heating.
  • Hot Start This feature prevents the unit for releasing a cold draft into the room when heating starts or when the unit changes from cooling to heating.
  • Powerful Operation When you push the POWERFUL button on the remote, the unit will get a 20 minute boost in cooling or heating power, even if it is already operating at high capacity.

Additional Information

MPNFVXS12NVJU
Weight (in lbs) 31.000000
Brand/Manufacturer Daikin
Additional Information Drain: 13/16"
Cooling BTU 12000
Heating BTU 12000
Maximum CFM 159-332 CFM
Decibel Level (dBA) 24-39
Refrigerant R410A
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230v 1 Phase 60 Hz
BTU/Tonnage 12,000 BTU/1 Ton
Mini-Split Type Floor Mounted
Zone Compatibility Multi Zone
Height 23-5/8"
Width 27-9/16"
Depth 8-1/4"
Warranty 12 Years with Online Registration

15,000 BTU Floor Mounted Daikin Mini-Split Multi Zone FVXS - Air Handler

The Daikin FVXS floor mounted unit is easy to install. It can be set up in various configurations, either on the floor or hanging low on a wall. Because it has a low height, it's easy to fit underneath windows. The floor mounted unit has an airflow pattern that is ideal for heating spaces. It also boasts an indoor sound pressure as low as db(A) and a program dry function to reduce humidity without causing temperature fluctuations. With a 12 year limited warranty, this floor mounted unit is an excellent replacement for traditional radiant systems for your home.Ductless mini-split heat pump systems are perfect for old and new homes or buildings, regardless of whether they have existing ductwork installed. Couple that with Daikin's beautifully designed indoor air handlers and you have elegance and efficiency that will last for years to come, guaranteed.

Features

  • Auto-Restart This feature enables unit to memorize operation mode, airflow, and temperature settings. If there is a power failure while the unit is running, it will return to those same operating settings once the power is restored.
  • Titanium Apatite Photocatalytic Air-Purifying Filter This feature combines an air-purifying filter and a deodorizing filter. It can last up to three years if it is washed every six months.
  • Program Dry Function This feature prioritizes reducing the humidity levels in a room without causing fluctuations in room temperature.
  • Comfort Mode This feature adjusts the flap in the indoor unit to prevent cool air from being blown directly onto the body. It also ensures that warm air is directed to the bottom of the room when the unit is heating.
  • Hot Start This feature prevents the unit for releasing a cold draft into the room when heating starts or when the unit changes from cooling to heating.
  • Powerful Operation When you push the POWERFUL button on the remote, the unit will get a 20 minute boost in cooling or heating power, even if it is already operating at high capacity.

Additional Information

MPNFVXS15NVJU
Weight (in lbs) 31.000000
Brand/Manufacturer Daikin
Additional Information Drain: 13/16"
Cooling BTU 15000
Heating BTU 15000
Maximum CFM 233-417 CFM
Decibel Level (dBA) 32-45
Refrigerant R410A
Liquid Line 1/4"
Suction Line 1/2"
Electrical 208/230v 1 Phase 60 Hz
BTU/Tonnage 15,000 BTU/1.25 Ton
Mini-Split Type Floor Mounted
Zone Compatibility Multi Zone
Height 23-5/8"
Width 27-9/16"
Depth 8-1/4"
Warranty 12 Years with Online Registration
