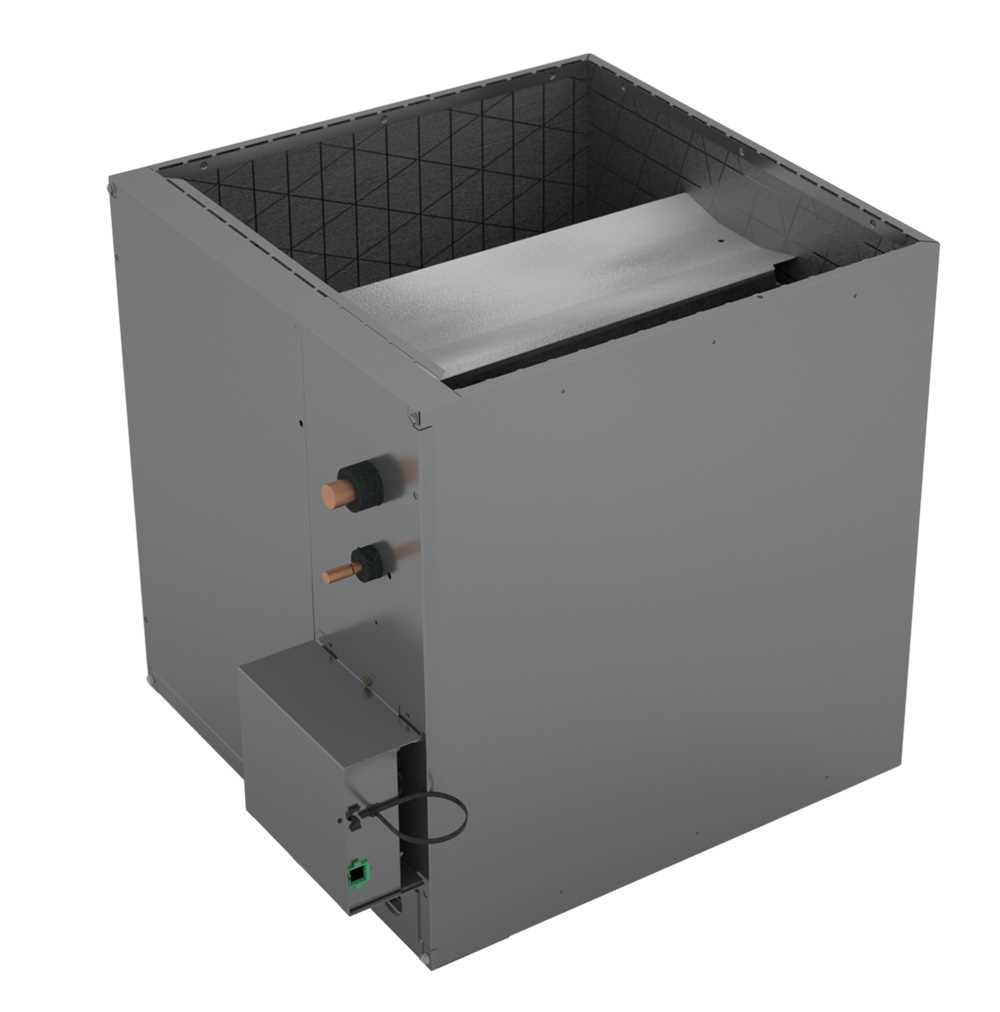

Daikin CAPE4860C4 CAPEA / CAPE Evaporator Coil, Upflow/Downflow, 4 Ton, 21" Width, 71 lb

Product Overview

CAPEA / CAPE Cased Aluminum Evaporator Coil, Upflow/Downflow, 4-5 Ton, 21 in Cabinet with EEV Expansion

Specifications :

• All-Aluminum evaporator coil
• Optimized for use with R-410A refrigerant
• Some models suitable for use with R-410A or R-22 refrigerant
• Electronic Expansion Valve (EEV) models featureˆ’ Compatible with Daikin One+ smart thermostat and other Daikin communicating equipmentˆ’ Cooling and heat pump applications ˆ’ Fault recall of six most recent faults
• CAPT models feature factory-installed thermal expansion valves for cooling and heat pump applications
• Check Flowrator for cooling and heat pump applications
• CAPEA, CAPE and CHPE models feature fator-installed electronic expansion valve for precise refrigerant control
• Vertical and horizontal models available
• CAPEA models include a single front access panel
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• 1 DecaBDE-free thermoplastic drain pain with secondary drain connections
• 1 UV-resistant drain pan
• 1 AHRI certified
• ETL listed

Cabinet Features :

• Twenty one inch depth for easier attic access
• Split seam front for easy access (Except CAPEA models)
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
