capacity:
60000 Btu
category:
Gas Furnace
depth:
28.75 in
height:
34-1/2 in
manufacturer:
Daikin
mpn:
GCVC960603BN
seer:
0.96
subcategory:
96% AFUE
type:
60000 BTU
voltage:
60 Hz/1 Ph/115 V
weight:
119
width:
17-1/2 in
Product Description

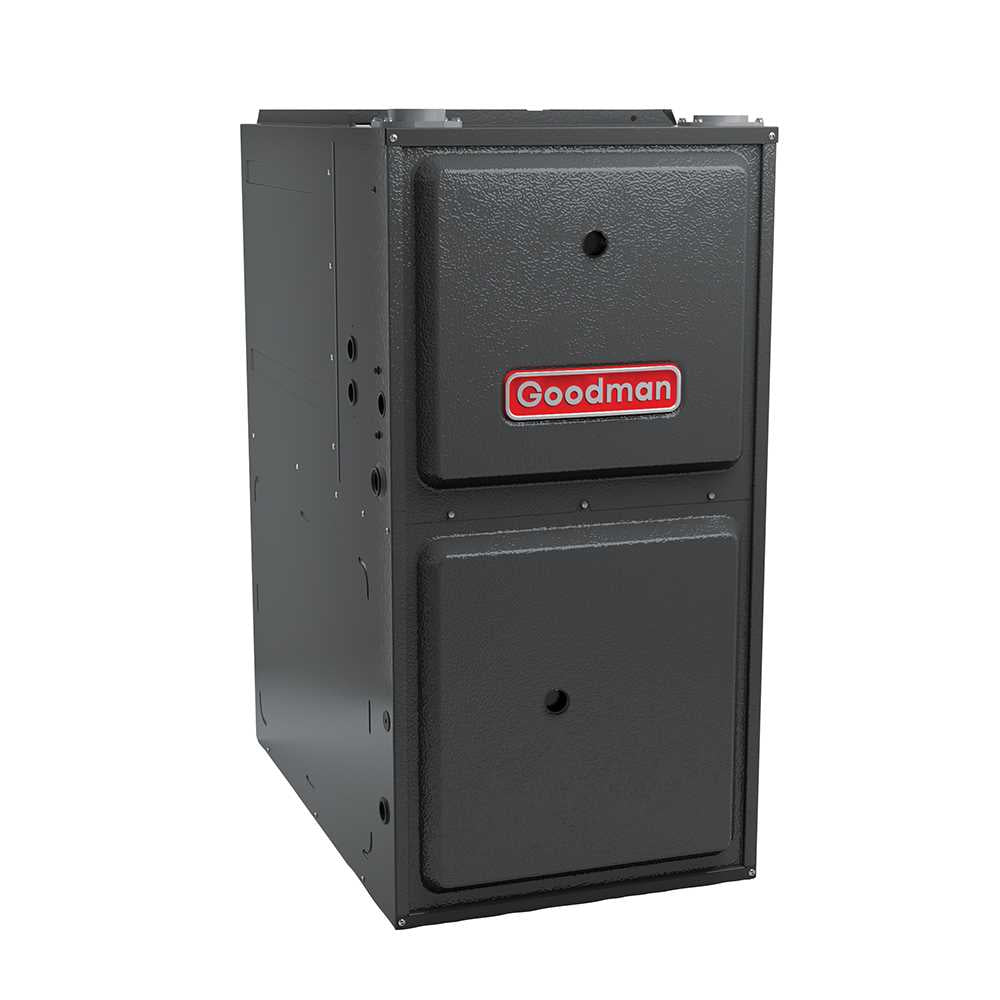

Daikin - GCVC960603BN Goodman 96% AFUE GCVC96 Gas Furnace Variable Speed ECM, Two Stage Convertible, Downflow/Horizontal, 60000 BTUH/H, ComfortBridge Technology compatible
Specifications :
- Heavy-duty aluminized-steel tubular heat exchanger
- Efficient and quiet variable-speed Blower
- Integrated communicating ComfortBridge„¢ technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud„¢ phone and tablet application
- Stainless-steel sloped secondary heat exchanger
- Silicon Nitride igniter
- Dual 7-segment display
- Color-coded low-voltage terminal
- Two-Stage gas valve
- All models comply with California 40 ng/J
- 1 AHRI Certified, ETL Listed
- 1 Energy Star
- 1 Two-stage gas valve
- 1 Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Cabinet Features :
- Multi-position installation: downflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchanger and blower section
- Bottom or side return air applications
- Heavy-gage steel cabinet with durable
Additional Information
BrandGoodman
Prop65 Label RequiredTRUE
Unit Depth28.75 in
Unit Height34-1/2 in
Unit Width17-1/2 in
Efficiency0.96
Family DescriptionComfortBridgeâ¢-Compatible Two-Stage, Variable-Speed ECM Gas Furnace Up to 96% AFUE
Model Efficiency0.96
FamilyGCVC96
Unit TypeIndoor
Unit Weight119 lb
Min. Circuit7.1 A
Motor Speed TypeVariable Speed ECM
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
Blower Motor RPM1250 r/min
AFUE96 %
Airflow Rate High Heating1525 ft³/min
High-Fire Input Capacity60000 Btu
High-Fire Output Capacity57660
