category:
Gas Furnace
depth:
28.75 in
height:
34-1/2 in
manufacturer:
Daikin
mpn:
GCVM970603BN
seer:
0.97
subcategory:
97% AFUE
type:
60000 BTU
voltage:
60 Hz/1 Ph/115 V
weight:
114
width:
17-1/2 in
Product Description

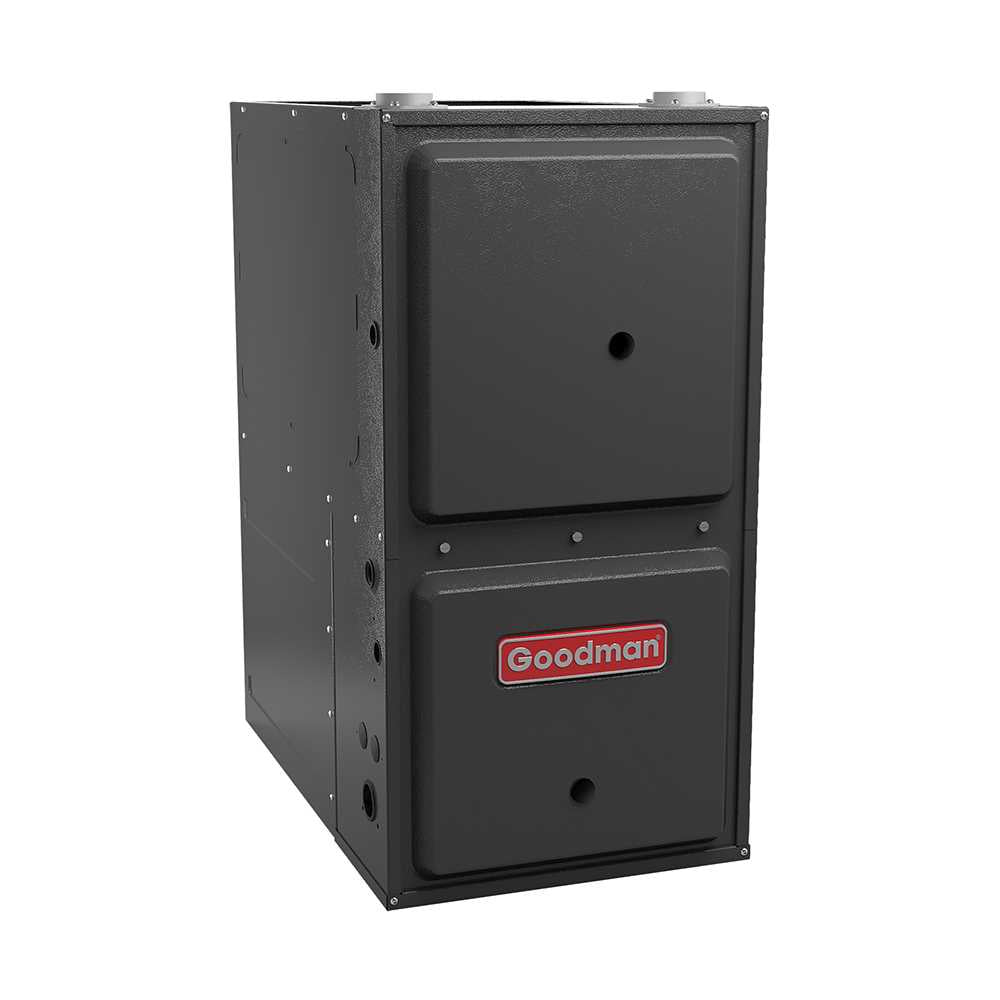

Daikin - GCVM970603BN Goodman 97% AFUE GCVM97 Gas Furnace Variable Speed ECM, Modulating, Downflow/Horizontal, 60000 BTUH/H, Low NOx ComfortBridge Technology compatible
Specifications :
- Heavy-duty aluminized-steel tubular heat exchanger
- Efficient and quiet variable-speed Blower
- Stainless-steel sloped secondary heat exchanger
- Self-calibrating modulating gas valve
- ComfortNet„¢ Communicating System compatible
- Silicon Nitride igniter
- Dual 7-segment display
- Color-coded low-voltage terminals
- Modulating gas valve
- All models comply with California 40 ng/J
- 1 AHRI Certified - ETL Listed
- 1 Energy Star
- 1 Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Cabinet Features :
- Multi-position installation: downflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchanger and blower section
- Bottom or side return air applications
- Heavy-gage steel cabinet with durable
Additional Information
BrandGoodman
Prop65 Label RequiredTRUE
Unit Depth28.75 in
Unit Height34-1/2 in
Unit Width17-1/2 in
Efficiency0.97
Family DescriptionComfortBridgeâ¢-Compatible Modulating Variable-Speed ECM Gas Furnace up to 98% AFUE
Model Efficiency0.97
FamilyGCVM97
Unit TypeIndoor
Unit Weight114 lb
Min. Circuit8.1 A
Motor Speed TypeVariable Speed ECM
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
Blower Motor RPM1250 r/min
AFUE97 %
Airflow Rate High Heating1075 ft³/min
High-Fire Input Capacity60000 Btu
High-Fire Output Capacity58200
NOX Burner TypeLow NOx
