category:
Gas Furnace
depth:
28 in
height:
33-3/8 in
manufacturer:
Daikin
mpn:
GM9S961005CN
seer:
0.96
subcategory:
96% AFUE
type:
100000 BTU
voltage:
60 Hz/1 Ph/115 V
weight:
140
width:
21 in
Product Overview

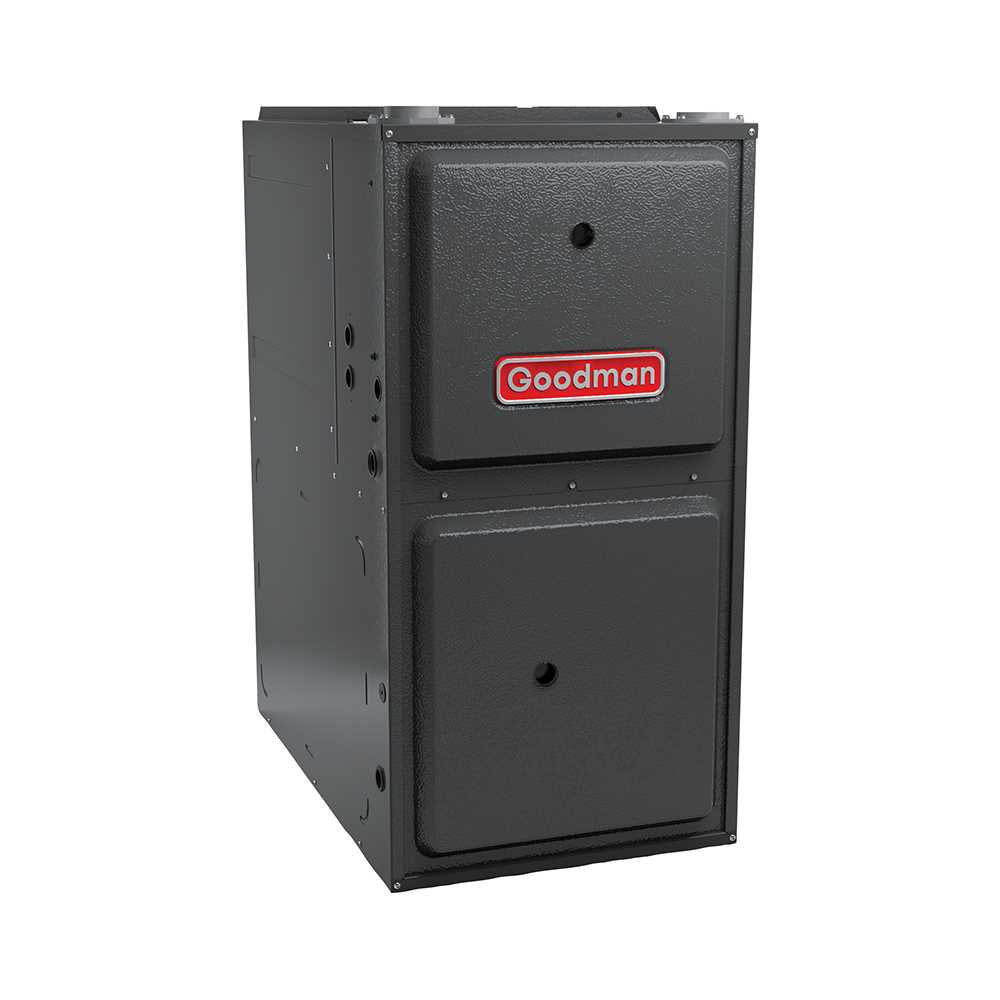

Goodman 96% AFUE GM9S96 Gas Furnace Multi Speed ECM, Single Stage, Upflow/Horizontal, 100000 Btu BTUH/H,
Specifications :
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel sloped secondary heat exchanger
- Silicon Nitride igniter
- Color-coded low-voltage terminals
- Multi-speed ECM blower motor with continuous fan speed
- Fault code LED Output
- AHRI Certified - ETL Listed
- Energy Star
- Single-Stage gas Valve
- Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
- 1 Low constant fan speed circulates air throughout the home
- 1 High static
- 1 All models comply with California Ultra-Low N0x 14 ng/J
Additional Information
BrandGoodman
Prop65 Label RequiredTRUE
Unit Depth28 in
Unit Height33-3/8 in
Unit Width21 in
Efficiency0.96
Family DescriptionSingle-Stage Multi-Speed ECM Gas Furnace Up to 96% AFUE
Model Efficiency0.96
FamilyGM9S96
Unit TypeIndoor
Unit Weight140 lb
Min. Circuit16.9 A
Motor Speed TypeMulti Speed ECM
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
AFUE96 %
High-Fire Input Capacity100000 Btu
High-Fire Output Capacity96100
