category:
Gas Furnace
depth:
28 in
height:
33.5 in
manufacturer:
Daikin
mpn:
GMEC800403AN
seer:
0.8
subcategory:
80% AFUE
type:
40000 BTU
voltage:
60 Hz/1 Ph/115 V
weight:
105
width:
14 in
Product Description

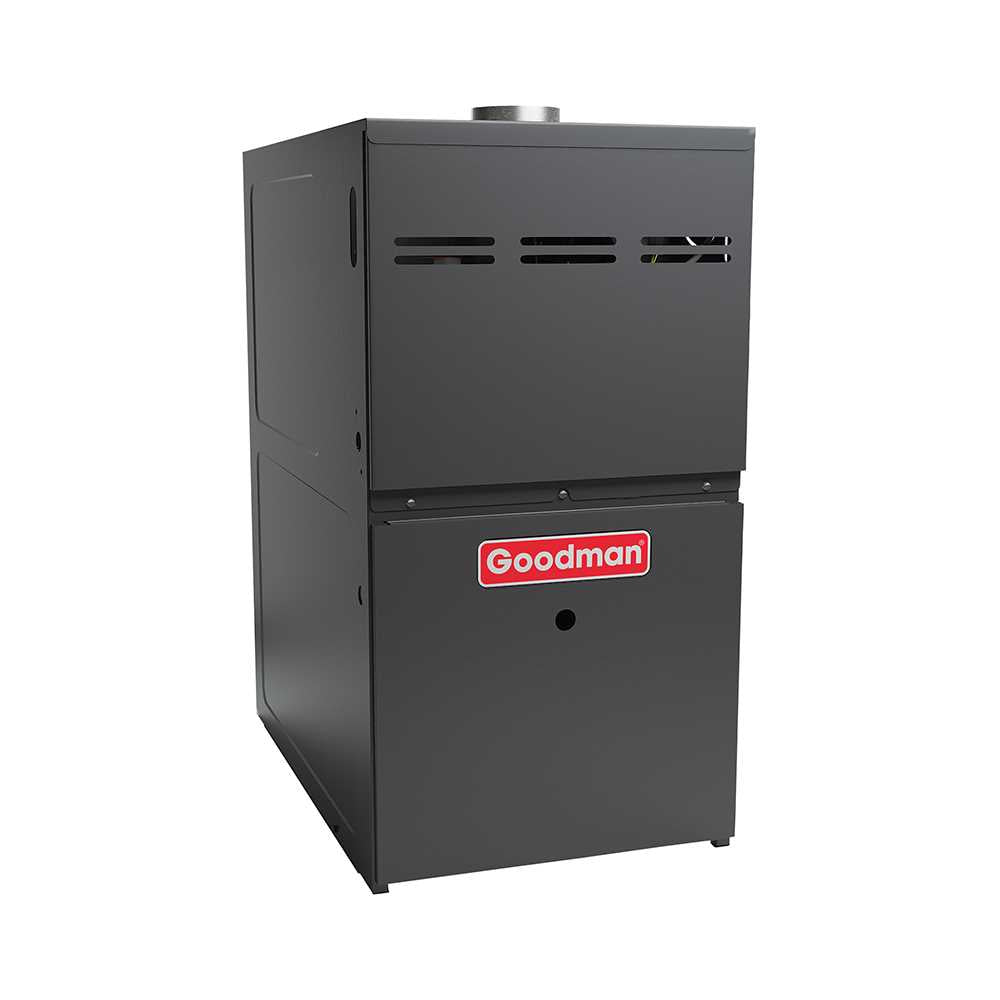

Daikin - GMEC800403AN Goodman 80% AFUE GMEC80 Gas Furnace Multi Speed ECM, Two Stage, Upflow/Horizontal, 40,000 BTUH/H,
Specifications :
- Heavy-duty aluminized-steel tubular heat exchanger
- "Silicon Nitride igniter"
- Color-coded low-voltage terminals
- Two-Stage gas valve
- Multi-speed ECM blower motor with continuous fan speed
- Fault code LED Output
- Two-stage gas valve
- Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Cabinet Features :
- Multi-position installation: upflow, horizontal left or right
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchanger and blower section
- Bottom or side return air applications
- Heavy-gage steel cabinet with durable finish
Additional Information
BrandGoodman
Prop65 Label RequiredTRUE
Unit Depth28 in
Unit Height33.5 in
Unit Width14 in
Efficiency0.8
Family DescriptionTwo-Stage Multi-Speed ECM Gas Furnace up to 80% AFUE
Model Efficiency0.8
FamilyGMEC80
Unit TypeIndoor
Unit Weight105 lb
Min. Circuit8.7 A
Motor Speed TypeMulti Speed ECM
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
Blower Motor RPM1200 r/min
AFUE80 %
Airflow Rate High Heating1223 ft³/min
High-Fire Input Capacity40000 Btu
High-Fire Output Capacity32,000
